Screen Exposure Systems

Vastex Exposit E2331 Screen Exposure System - Holds up to 23"x31" Screens

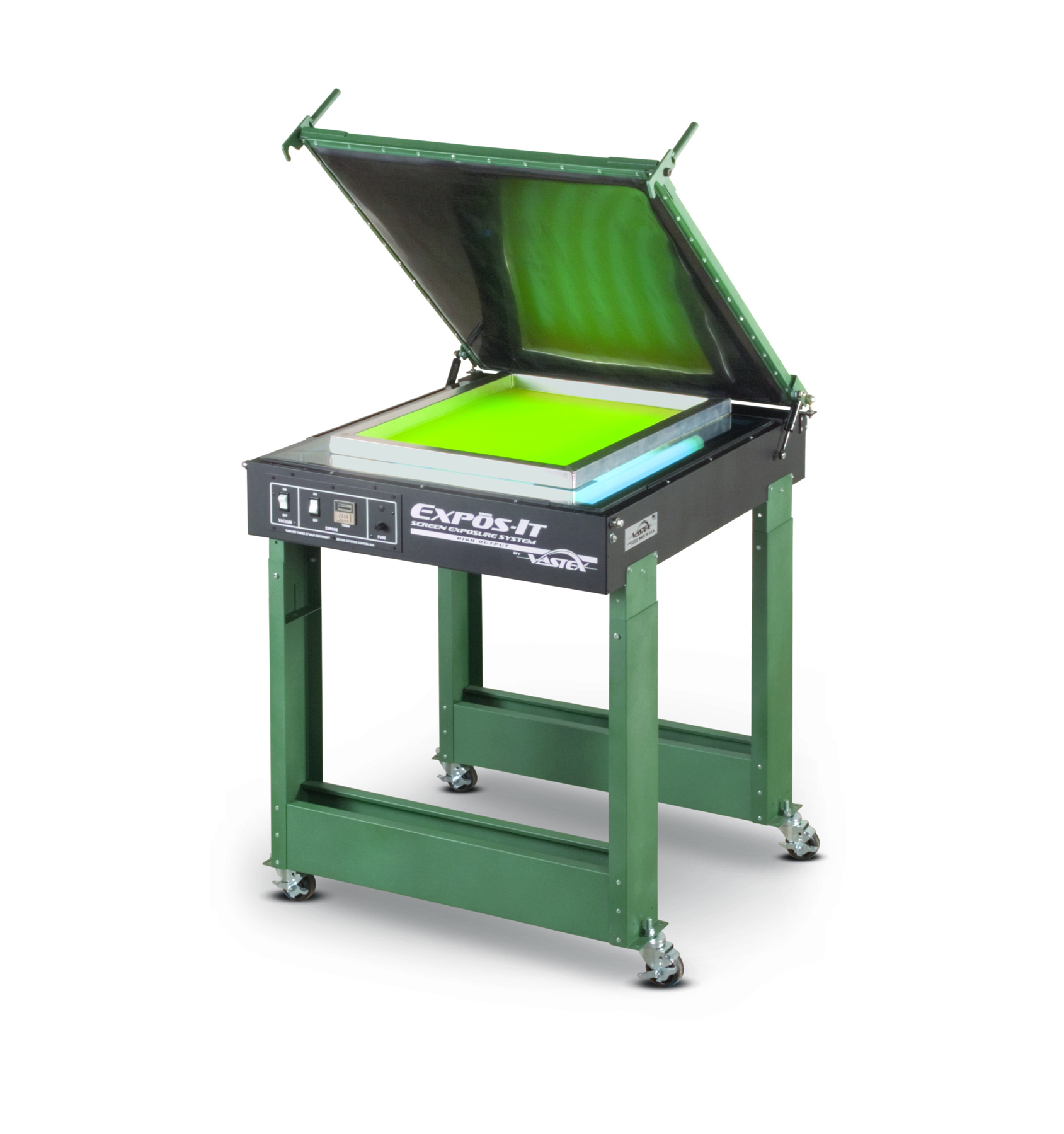

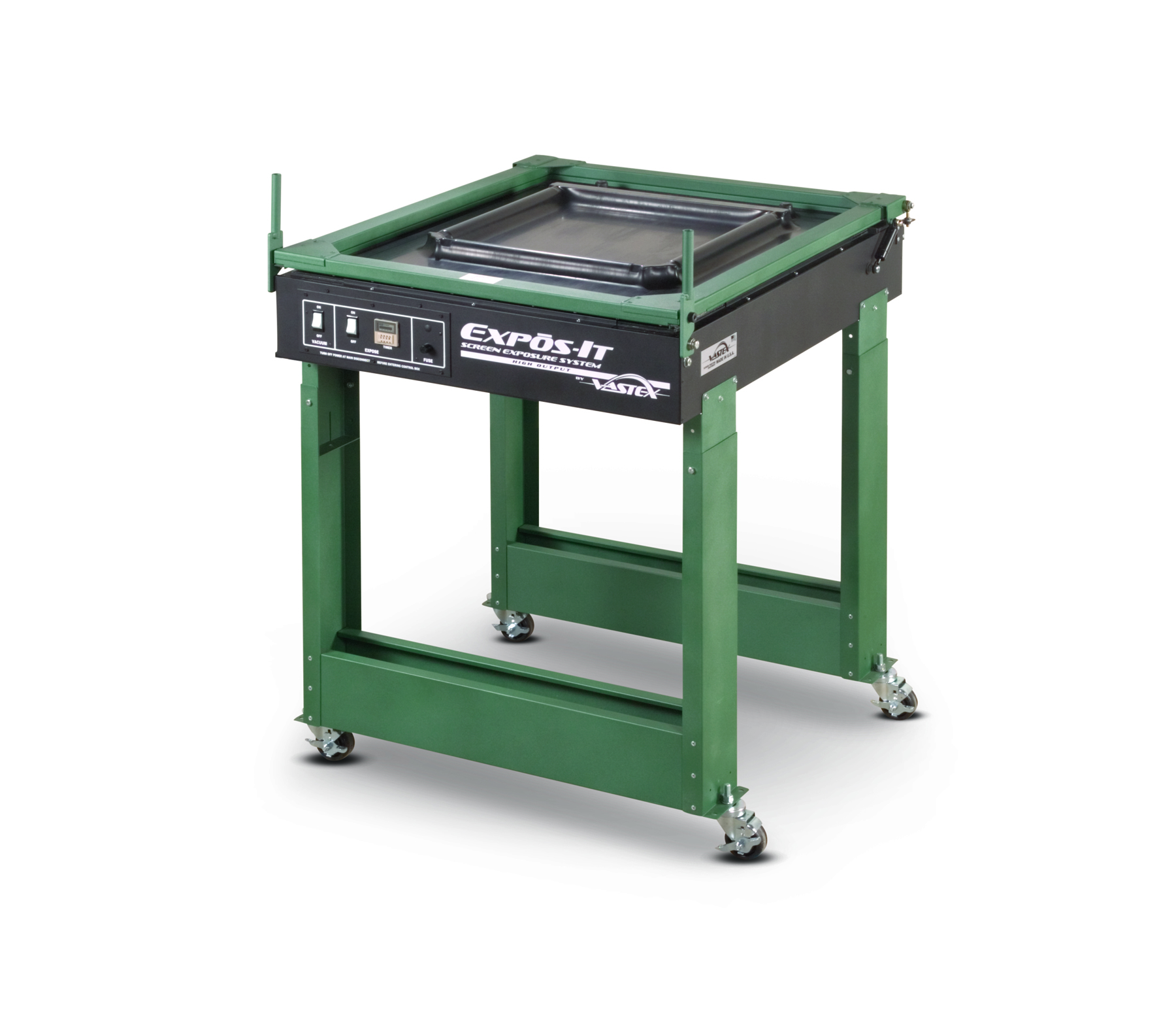

PHOTO Open  /  PHOTO Closed

Fast power vacuum hold down. Six 28" (71cm) long 40 watt bulb. Vacuum intake draws through the glass. High impact tempered glass virtually eliminates breakage! Precision digital timer controls lights and vacuum. Heavy duty construction with bearing lid lock. High bulb density (3.63" (9.2 cm) center to center)

Maximum screen size: 23 inch x 31 inch (58.4 x 78.7 cm) outer dimension.

Electrical: 120V / 60 HZ or 240V / 50/60 HZ power

3 year manfacturer's limited warranty

List Price: $1,890   Our Discount Price: $1,699   Crating: $120

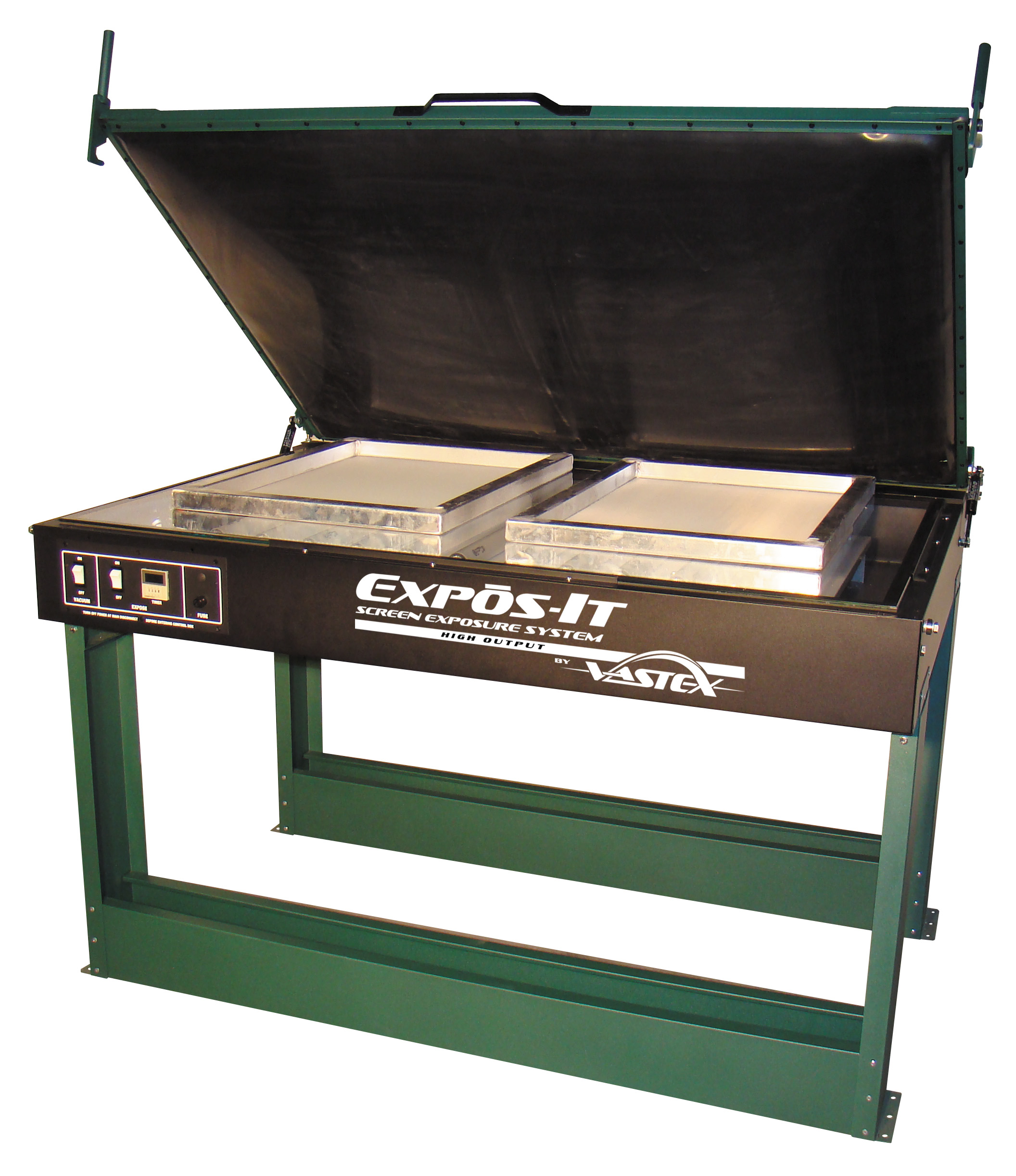

Vastex Exposit E4731Screen Exposure System - Holds up to 31"x47" Screens




Fast power vacuum hold down. Twelve 28" (71cm) long 40 watt bulb. Vacuum intake draws through the glass. High impact tempered glass virtually eliminates breakage! Precision digital timer controls lights and vacuum. Heavy duty construction with bearing lid lock. High bulb density (3.63" (9.2 cm) center to center)

Maximum screen size: 47 inch x 31 inch (119.4 x 78.7 cm) outer dimension or two 23" x 31" screens

Electrical: 120V / 60 HZ or 240V / 50/60 HZ power

3 year manfacturer's limited warranty

List Price: $2,890   Our Discount Price: $2,599   Crating: $250

Amergraph Advantage 150 Metal Halide Screen Exposure System - Holds up to 31"x41" Screens



PHOTO 1  /  PHOTO 2

Brand new. A superb screen exposure sysem at a discounted price. 1200 watt instant start metal halide point light.. Vacuum holds up to 31 inch x 41 inch screens or multiple smaller screens. 20 channel digital light integrator assures exact exposures. Completely automatic operation. Set screen in unit, lower vacuum blanket, set exposure on intregrator, turn on, and walk away. Unit draws down vacuum. When correct vacuum pressure is achieved light turns on. After light goes off, vacuum is automatically shut off and the vacuum is released.

Overall dimensions: 44 inch high x 51 inch wide x 44 inch deep.

Working height: 40 inches.

Maximum screen size: 31 inch x 41 inch outer dimension.

Electrical: 120 volt 15 amps.

3 year manfacturer's limited warranty

List Price: $3,895   Our Discount Price: $3,499   Crating: $200

  LEASING

   Contact ACG Equipment Finance  -  Click here for leasing information and application

Fast T-Jet Information:

For more information or to order please call:

1-800-408-0040 or 201-797-1504



Visa, Mastercard, and American Express accepted.
