Epson SureColor S80600 Printer

List Price - $25,945

Now Only $20,945

Call for best price!

Why should I purchase a S80600 from Equipment Zone?

Epson SC-F7200, Epson F7200, F7200 Sublimation, F7200 Printer, Epson F7200 for sale, Epson F7200 price

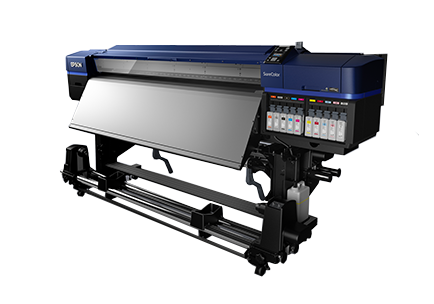

The 64-inch SureColor S80600 features newly-developed Epson UltraChrome® GS3 9-color solvent ink - including an all-new Red solvent along with the option of White or Metallic Silver inks - for outstanding photographic print quality, durability, and media compatibility. When combined with an all-new precision media feeding system and a high-performance Dual-Array PrecisionCore® TFP print head, the SureColor S80600 is one of the most productive and photographic sign printers available.

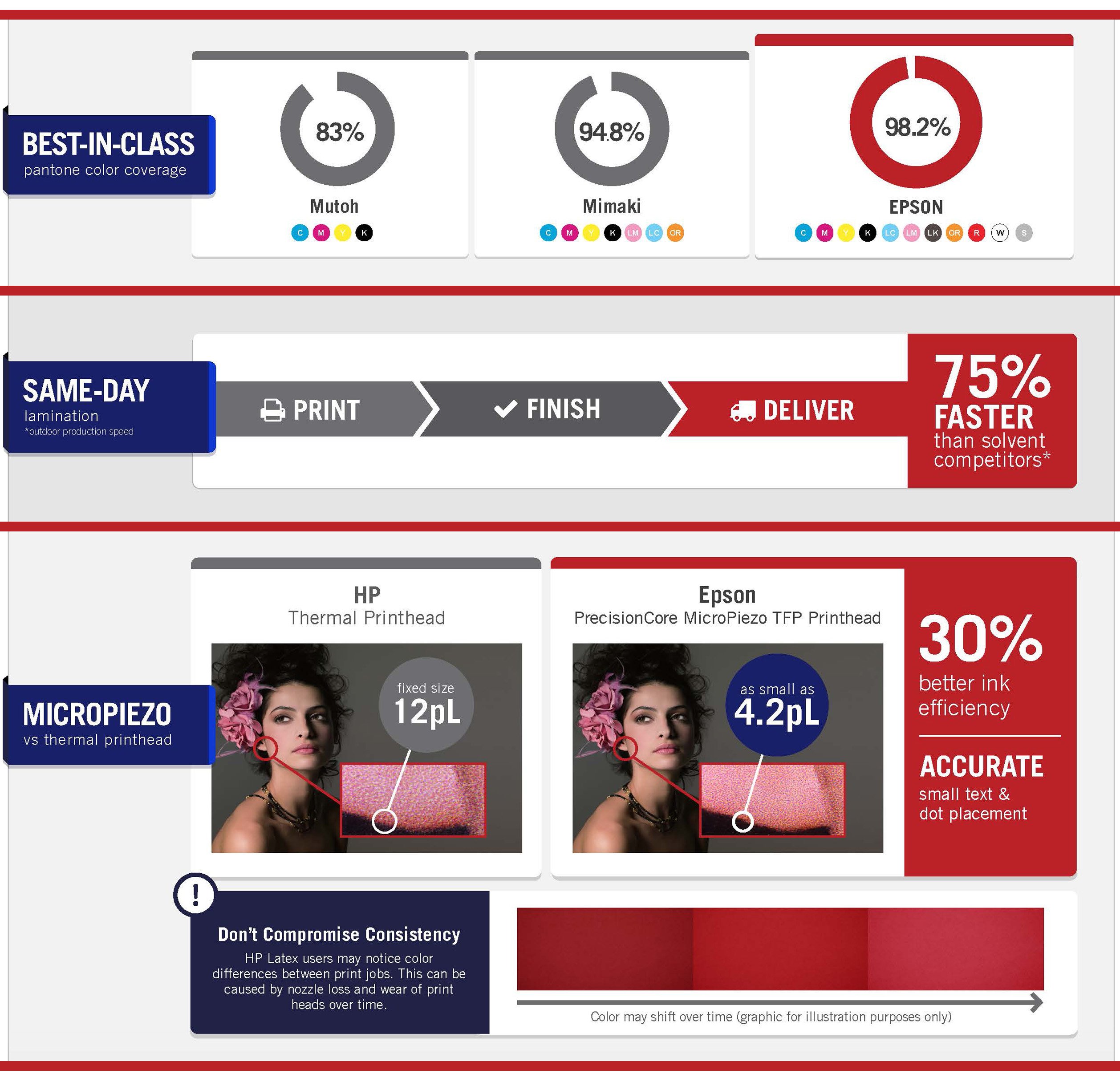

Unrivaled Print Quality

Solvent printing. Solved.

Extreme image quality

Photographic image quality the largest color gamut in its class.

Superior media compatibility

Print on virtually any medua type from adhesive vinyl to banner material.

Same day lamination

First solvent printers to offer same day lamination.

Pantone Certification

Reach up to 98.2% Pantone coverage, the highest coverage in its class.

Robust Print Head Design

Designed specifically for hte high-demands of production environments.

3M MCS warranty

The most comprehensive warranty program in the signage industry is now available on all standard UltraCrhrome GS3 Inks.

Robust Print Head Design

Designed specifically for the high-demands of production environments.

Avery ICS Performance Guarantee

Verified and tested by one of the top media manufacturers in the world.

Production Capacity

High-capacity ink cartridges at 700 ml per color.

Includes Media Drying System at no additional cost!

Environmentally Responsible

No special ventilation or air purification is required.

Consistent Color

Efficient, precise and repeatavle performance with excellent image quality.

Powered by Onyx

Each Surecolor S40600, S606000, and S80600 includes Onyx Gamma Print RIP Software for fast and easy production.



Specifications

Print Technology:
  • Dual Advanced PrecisionCore™ TFP®
  • 10-channel
  • Drop-on-demand
  • Inkjet printhead with ink-repelling coating technology
Ink Type:
  • UltraCrome GS3
Production Edition Ink Configuration (x2):
  • C, M, Y, K, Lc, Lm, Lk, O, R, optional W or Ms
Droplet Technology (x2):
  • Smallest droplet size: 4.2 picoliters
  • Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:
  • 1440 x 1440 dpi; 1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi

  • Print Speed:             Banner               Vinyl
  • Draft:                              1020 sq ft/hr       N/A
  • Production:                 290 sq ft/hr          310 sq ft/hr
  • Quality:                         195 sq ft/hr          142 sq ft/hr
Printer Language/Drivers:
  • Epson ESC/P® raster
Nozzle Configuration:
  • Color and Monochrome heads
  • 720 nozzles per Color with Variable Droplet Size Minimum drop size is 5.3 picoliters
Catridge Fill Volume:
  • 700 mL x 10 colors total
Ink Catridge Shelf Life:
  • 2 years from printed production date or 6 months after opened
Media Handling:
  • Media Input: Single roll-to-roll
  • Cut-sheet Size: 17"x 22" up to 64" wide
  • Media Core: 2" or 3" core
  • Input Roll Diameter: Up to 9.8"
  • Input Roll Weight: Up to 95 lb
  • Media Thickness: From 45 gsm up to 1 mm thick
  • Take Up Reel: Fully automatic "wind in" or "wind out" with tension bar
  • Output Roll Weight Up to 95 lb
  • Media Heating System
    • Pre Heater: Off or 86˚ to 122˚F
    • Platen Heater: Off or 86˚ to 122˚F
    • Post Heater: Off or 86˚ to 131˚F
    • Independentaly controlled via control panel or front-end RIP
Printable Area and Accuracy:
  • Max. Paper Width: 64"
  • Min. Paper Width: 10"
  • Left and Right Margins: 0.2" (0.4" total)
  • Max Printable Area: 63.6""

Printer Interfaces:
  • Includes as standard one USB 2.0 (1.1 compatible)
  • One Gigabit Ethernet Port
  • ONYX® GamaPrint Pro RIP Requirements
  • Server Workstation
    • Windows® 7, 8, Windows Vista® or Windows XP (32-bit or 64-bit) 3.2GHz Intel i7 or better 6GB memory recommended
  • Client Workstation
    • Macintosh 10.5+, Windows 7, 8, WIndows Vista or Windows XP (32-bit, 64-bit)
Operating Systems Supported:
  • Mac® Mac OS® X, 10.8.x – 10.11.x
  • Windows 10, 8.1, 7 (32-bit, 64-bit)
Weight and Dimensions (W x D x H):
  • 103" x 34" x53" (2616 mm x 609 mm x 1346 mm)
  • Weight: 615 lbs
Acoustic Noise Level
  • Aproximately 59 dB according to ISO 7779
Temperature
  • Operating: 50˚ to 95˚F (10˚ to 35˚C)
Relative Humidity
  • Operating: 20 – 80%
  • Operating (recommended): 40 – 60%
  • Storage: 5 to 85% (no condensation)
Electrical Requirements
  • Printer requires two 110 V outlets
  • Voltage: AC 100 – 120 V, AC 200 – 240 V
  • Frequency: 50 – 60 Hz
  • Current: 20A at AC 110 – 120 V or 10 A at AC 200 – 240 V
  • Optional Dryer
  • Voltage: AC 100 – 120 V, AC 200 – 240 V
  • Frequency: 50 – 60 Hz
  • Current: 1A at AC 110 – 120 V or 0.5 A at AC 200 – 240 V
Power Consumption
  • Operating Approx. 650 W or less
  • Standby Heaters On: Approx. 520 W
  • Standby Heaters Off: Approx. 30 W or less
  • Power Off: Less than 0.6 W or less
  • Sleep Mode: Less than 3.5 W
  • ENERGY STAR® qualified
  • Country of Origin China
Read more about Epson's Rewards Program


Why purchase a S80600 printer through Equipment Zone?

Equipment Zone is an authorized and trusted retailer of Epson products. We carry various Epson printers, inks & supplies at the lowest prices on the market. We stand by everything we sell, and will stand by you to make your purchase easy and assuring. Purchasing a sublimation printer is a big step, and you should feel happy in your decision. You'll be glad you purchased your printer through Equipment Zone because we are here to help you along the way. If you ever have any problems, just give us a call and you will be set up with exclusive technical support.
