Print:

Printing Technology:

• Dual Advanced PrecisionCore® TFP® Print Heads
• 10-channel, drop-on-demand, inkjet Print Head
• 10 Color (C,M,Y,K, Lc, Lm, Lk, O, R + W or Ms)
• Solvent Based Ink Chemistry

Minimum Ink Droplet Size:

4.2 picoliters; Variable Droplet Technology

Maximum Print Resolution:

1440 x 1440 dpi

Maximum Printable Area:

63.6"

Print Speed:

• Draft - 1,020 sqft/hr
• Production: Banner - 340 sqft/hr, Vinyl 195 sqft/hr
• Quality: Banner - 195 sqft/hr, Vinyl - 140 sqft/hr

Nozzle Configuration:

Color and Monochrome 720 nozzles per Color

Printer Details:

Software Included:

Front-End RIP Workflow by Onyx Thrive PANTONE licensed PostScript Language Level 3 Compatible RIP by Onyx. Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality. The Epson SureColor S60600L is also supported by most leading third-party RIPs and workflows.

Controller Specifications:

Epson ESC/P® raster

Interfaces:

• One Hi-Speed USB 2.0 (1.1 Compatible)
• One Gigabit Ethernet Port

Ink:

Ink Type:

Ultrachrome® GS3

Ink Palette:

CMYKLcLmLkOR + W or Ms

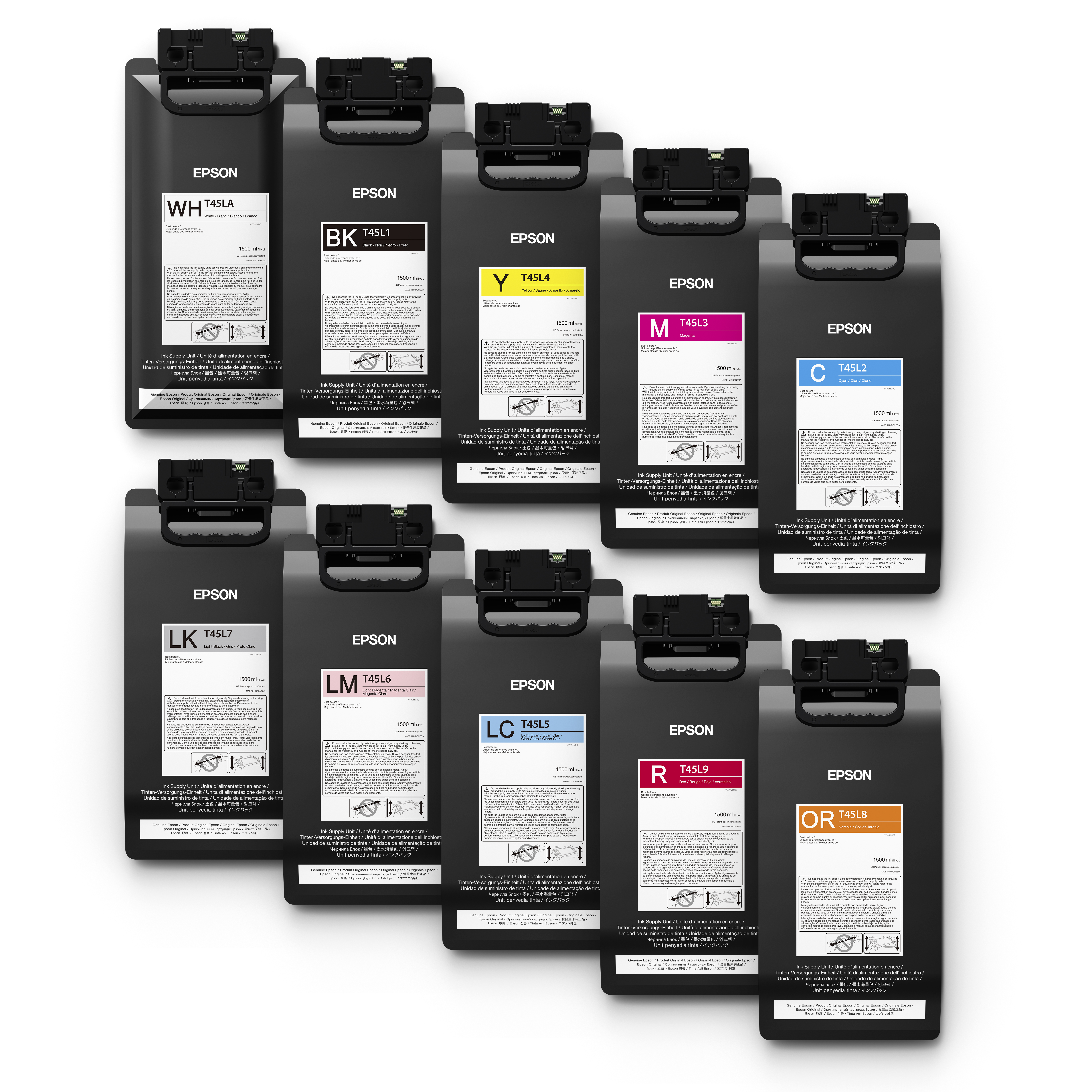

Replacement Ink:

• Black T45L120
• Cyan T45L220
• Magenta T45L320
• Yellow T45L420
• Lt Cyan T45L520
• Lt Magenta T45L620
• Lt Black T45L720
• Orange T45L820
• Red T45L920
• White T45LA20
• Metallic Silver T45LB20

Ink Supply System:

Ink Supply Fill Volume:

1500mL, 500mL Metallic Silver

Ink Shelf Life:

2 years from printed production date or 6 months after open

Power:

Rated Voltage:

AC 100 - 120 V, AC 200 - 240 V

Rated Frequency:

50- 60 Hz

Power Consumption:

• Operating: Approx. 650W or less
• Standby Heaters On: Approx 520W
• Standby Heaters Off: Approx 30W or less
• Power Off: Approx 0.6 W or less
• Sleep Mode: Less than 3.5W
• One Gigabit Ethernet Port

Power Requirements:

Two (2) 110v Outlets + One (1) 110v Outlet for additional dryer unit

Rated Current:

Printer: 20A at AC 110-120 V or 10A at AC 200-240 V

General:

Operating Systems:

Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit)

Server Systems:

Windows 7, 8, Windows Vista or Windows XP (64 bit)

System Requirements:

Intel i7 or better 6GB memory recommended

Temperature:

• Operating: 50 to 95 degrees F (10 to 35 degrees C)
• Storage: -4 to 104 degrees F (-20 to 50 C)

Humidity:

• Operating: 20-80%
• Operating (Recommended): 40-60%
• 5-85% (no condensation)

Sound Level:

Approximately 59dB according to ISO 7779

Dimensions:

103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H

Weight:

• 720 lbs

Warranty:

• Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
• Optional Epson SureColor S60600L Extended service plans available for purchase for up to three years of total coverage.
• Participate in the Epson S-Series Rewards program to be eligible for up to five years of total coverage.

Printable Area and Accuracy:

Maximum Paper Width:

64"

Minimum Paper Width:

12"

Maximum Printable Width:

63.6"

Maximum Printable Length:

Maximum printable length limited by software application, OS, media length, and RIP

Roll Media Handling:

Maximum Roll Diameter:

Up to 250mm

Maximum Roll Weight:

Up to 95lbs
