Check Out The Epson SureColor F2100 Printer

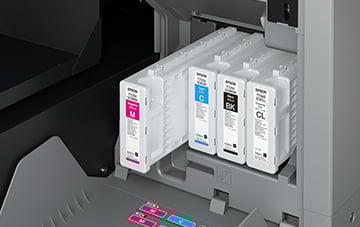

F2100 Ink Bay

High-Quality DTG Printing

Epson® UltraChrome® DG Inks are durable, vibrant and safe, with outstanding color performance, plus equal pricing for color and White inks.

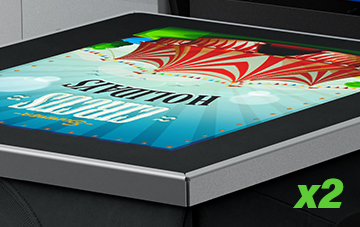

F2100 Garment Platen

Up to Twice as Fast

Newly developed print modes, including Light Garment Mode,offer consistent print quality at up to twice the speed of our previous generation.

Highlight White Ink Mode

Highlight White Ink Mode

This unique feature offers simultaneous printing of White and color inks on the color pass for greatly improved image quality, speed and efficiency.

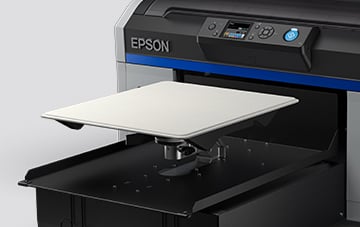

F2100 Quick Load Platen

Fast Loading

The easy-to-use, all-new quick-load grip pad reduces traditional hoop platen load times.

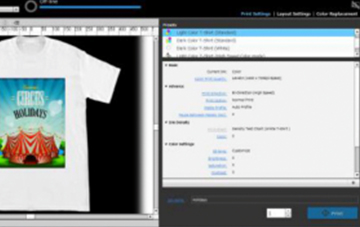

F2100 Garment Creator Software

Easy to Learn Workflow

The Improved Epson Garment Creator Software includes powerful tools for layout and text, color management, ink control, cost estimation, plus hot folders.

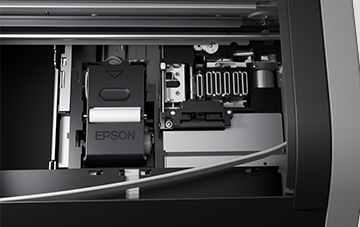

Reduced Maintenance

Reduced Maintenance

Featuring a fabric wiper and an in-line cleaning cartridge, the integrated self-cleaning system allows the printer to perform daily maintenance to reduce downtime.

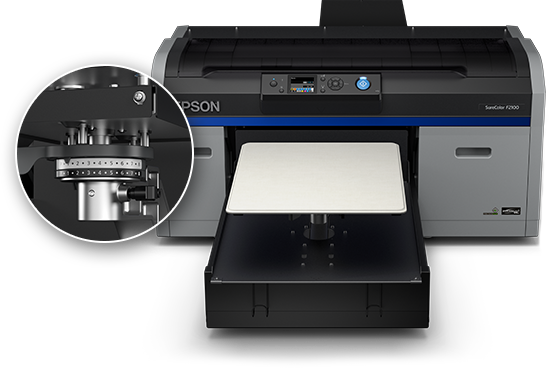

Garment Loading System

Robust Garment Loading System

The Epson F2100 Printer automatically verifies the surface height of the garment is at an acceptable height before printing. Faster garment loading is achieved when using the grip pad cover instead of traditional platen hoop. The grip pad cover can be applied to small, medium, and large size platens and is user replaceable.

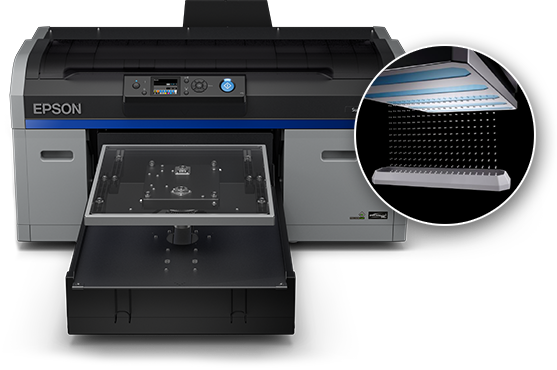

Automatic Cleaning System

Inline Automatic Cleaning System

The Epson F2100 has a built-in cleaning system that delivers cleaning solution through the printhead. No ink is used. This eliminates manual daily tube wash activity and is automatically performed to save time and ensure proper maintenance. Inexpensive cleaning cartridges are available and provides over 2 months of use.

Epson F2100 DTG Printer Reliability and Maintenance

Auto Cleaning System

Auto Cleaning System

Cleaning solution automatically delivered through printhead eliminates manual daily tube wash activity.

CLEANING CARTRIDGES
Air Filtration

Air Filtration

Pulls air inside of the printer through a replaceable filter to remove dust and loose garment fibers from print area.

AIR FILTERS
Dust Guard

Dust & Lint Guard

Fabric wiper prevents dust and garment fibers from contacting the printhead automatically.

CHAT NOW

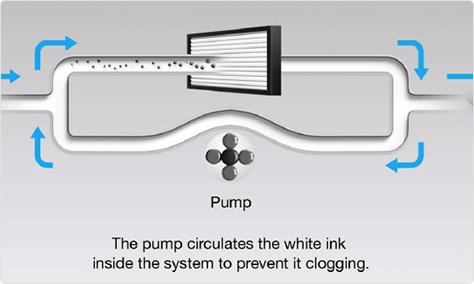

Ink Recirculation System

Reduced White Ink Nozzle Clogging

  • White ink is triple filtered before reaching printhead
  • Patented automatic ink recirculation system
  • Takes only 15 seconds to complete
SHOP WHITE INK

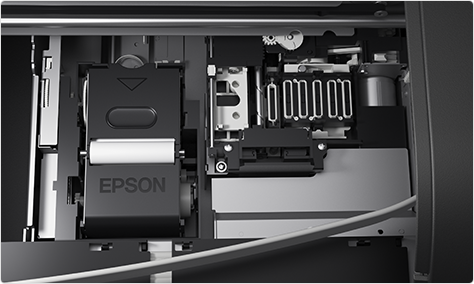

F2100 Maintenance Station

Less than 10 Minutes Weekly Maintenance

  • Easily remove white ink cartridges and shake them
  • Nozzle Health Verification
  • Printhead Cleaning Cap
PRINT HEAD CLEANING KITS
F2100 Garment Loading

Epson UltraChrome DG Ink

Internally Developed by Epson Pigment ink technology designed for cellulose-based garment imaging. Best with 100% cotton and performs well with cotton-poly blends and Tri-blend garments. Epson UltraChrome DG Ink is Eco Passport certified by Oeko-Tex. This is an international safety standard in the textile industry and a system by which textile chemical suppliers demonstrate that their product can be used in sustainabnle textile production.

Automatic Cleaning System

Inline Automatic Cleaning System

The Epson F2100 has a built-in cleaning system that delivers cleaning solution through the printhead. No ink is used. This eliminates manual daily tube wash activity and is automatically performed to save time and ensure proper maintenance. Inexpensive cleaning cartridges are available and provides over 2 months of use.

The Best Just Got Better!

Designed exclusively for direct-to-garment printing, the Epson SureColor F2100 offers an entirely purpose-built system for high-quality prints at production speeds. Developed using the latest advancements in performance imaging, including Epson® PrecisionCore® TFP® printhead and Epson UltraChrome® DG garment ink technology, the SureColor F2100 achieves up to twice the speeds of previous generation of Epson DTG printers. Additional improvements – like a quick-load platen and robust Epson Garment Creator Software – take productivity even further, while the all-new integrated self-cleaning system means less downtime.

This printer improves upon the SureColor F2000 in three key areas:

Reliability
  • Inline Cleaning cartridge – Automatically performed to save time and ensure proper maintenance
  • Triple Filtered White Ink – Reduced white ink nozzle clogging for greater up-time and reliability
Performance
  • Up to Twice as fast – New print modes offer up to 2x Light Garment Speed, and 33% faster dark garment speed.
  • Garment Grip Pad - Faster and more accurate garment loading than traditional platen hoop
Quality
  • Highlight White – Simultaneous printing of white and color on top coat for brighter white with minimal increase in white ink use
  • PrecisionDot – Variable droplet technology and image processing for smoother gradients, sharp detail, and greater range of color.

Simple upgrade path and scalable design with high degree of cross-compatibility between SureColor F-Series Direct-to-Garment printer models:


Compatibility
  • Consumables– Both SureColor F2000 and F2100 printers utilize the same UltraChrome DG inks cartridges, pretreatment solution, and maintenance kits.
  • Print Platens – Utilizing a common platen mounting system, all existing platens compatible between with both model printers.
  • Physical Footprint – Both models share the same physical dimensions and feet positions.
Print:

Printing Technology: Epson UltraChrome DG Ink
Advanced PrecisionCore TFP Print Head Maximum Print Resolution: Up to 1440x1440 dpi for White Ink
Up to 1440x720 dpi for Color InkNozzle Configuration: 10 Channels of 360 Nozzles
7 Cartridge Bays
Ink:

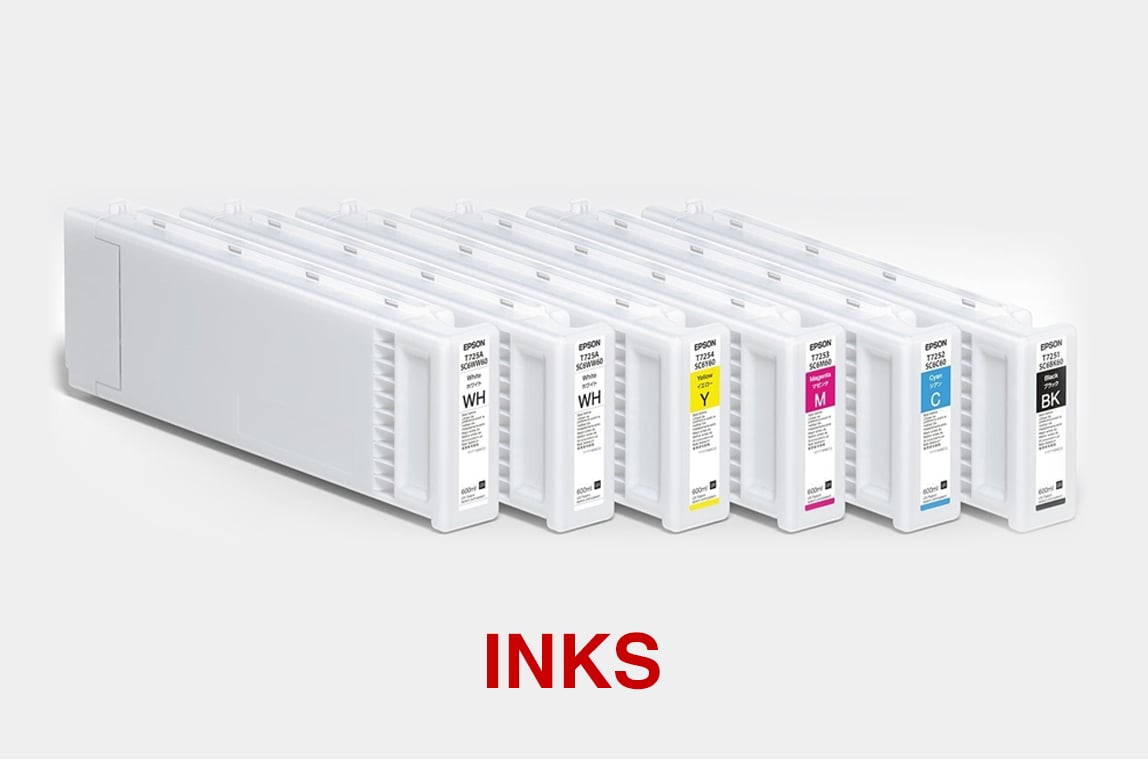

Replacement Ink: Black Cartridge (600 ml): T7251002
Cyan Cartridge (600 ml): T7252002
Magenta Cartridge (600 ml): T7253002
Yellow Cartridge (600 ml): T7254002
White Cartridge (600 ml): T725A002
General:

Operating Systems: Windows® 10, Windows 8.1
Apple® MacOS 10.12, OS X 10.11, 10.10
Garment Media Handling:

Thickness: Garments up to 0.98” ThickMedia Type: 100% Cotton or cellulose fiber garment recommended Maximum Print Area: Maximum Printing Area 16” x 20” (Optional Large Platen)Supported File Formats: Tiff and PNG recommended for support of transparency
JPG and BMP
Curing Requirements:

Heat Press Times: White Only: 45 sec/6 PSI
Colour Only: 45 sec/6 PSI
White & Colour: 75 sec/6 PSI
Use more time for heavy coverage on large areasHeat Press Temperature: Heat Press Temp - 338°F/170°CHeat Conveyer Times: Heat Conveyer Temp - 320°F/160°CHeat Conveyer Temperature: White Only: 3.5 to 4.5 min
White & Color: 4.5 to 5.0 min
Printer Details:

Software Included: Garment Creator Application
Epson Professional Communication Driver for WindowsInterfaces: 10/100Base-T Ethernet and USB 2.0
Power:

Power Supply Voltage: AC 100-240 VRated Frequency: 50-60 HzPower Consumption: Approx. 52W
Approx. 20W
Approx. 10WRated Current: 0.4-0.7A
