Knight Heat Presses

Heat Transfer Presses

Swing-Away Models

The best Heat Presses available at the best prices
Digital Knight Heat Presses
Fast Tjet Discount Prices
Digital Garment Printers



 DK20S - 16" x 20" size          DK25S - 20" x 25" size
 AUTOMATIC:    DK20SP - 16" x 20" Air Operated       DK25SP - 20" x 25" Air Operated



The Digital Knight line of transfer presses is the culmination of over four decades of perfecting the design, mechanics and technology of heat press machinery. All of these presses by Geo Knight & Co boast heavy steel welded frameworks built to hold up over years of heavy use and stress.

At the heart of these machines is a state of the art digital microprocessor control and proprietary heat control circuit field tested beyond 10 million heating cycles. This allows for an unprecedented 3 year warranty on the control. The Digital Knight controller features an oversized LCD display for easy reading of time, temperature, and pressure/height gauge readings. The controller has a surprising array of extremely useful features, such as user programmable presets, automatic timing, finished cycle recording, selectable alarms, and much more. Overall, the extremely accurate control and intuitively easy to use interface makes for a reject-free production enviroment.

The heaters on all platens of the Digital Knight line use an exclusive coil winding technology for dramatically superior evenness and speed of heating. Compared to traditional heating methods, the Geo Knight & Co SuperCoil-Microwinding heater technology outperforms everything else. Of course, all heat platens are lifetime warrantied.

HEAT PRESS INDEX
DK20S


Floor Stand Option
 Twin Shuttle Option

DK20S

Digital Knight 16" x 20" Swinger

  • Fully digital temperature control
  • Automatic digital timer
  • Digital pressure/height gauge
  • 70 programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwinding™ heater technology
  • Accommodates materials up to 1" thick
  • Temperature readout accuracy +-2° F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon coated heat platen
  • Lifetime warranty on heat platen
  • 3 year warranty on control
  • 1 year warranty on entire press
  •
  • Weight: 185 Lbs
  • Electrical: 1800 watts / 120 volt 15 amps. Also available in 220 volt 8 amps (add $35)
  • Dimensions: 32" D x 18" W x 18" H
  •
    DK20S - List: $1,575
    EZ Price: Call for Quote - 1-800-408-0040

    OPTIONS:

    Floor Stand (with casters) - List: $295   EZ Discount Price: $283
    Weight: 77 Lbs
    Shipped Dimensions: 36" D x 24" W x 8" H
    Assembled Dims: 26" D x 16" W x 29" H

    Twin Shuttle Option - List: $650   EZ Discount Price: $624
    Weight: 70 Lbs
    Dimensions: 40" D x 21" W x 8" H
    DK20S
    DK25S

    Geo Knight DK20JS

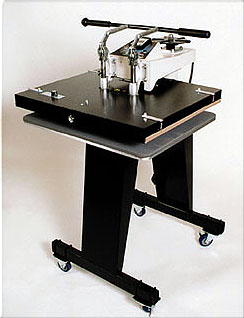

    DK25S

    Jumbo Digital 20" x 25" Swinger

  • Same features as the DK20S but with an OverSized 20" x 25" heat platen
  • Heavy duty floor stand with lockable casters
  • Lifetime warranty on heat platen
  • 3 year warranty on control
  • 1 year warranty on entire press
  •
  • Weight: 240 Lbs
  • Electrical: 3000 watts / 220 volt 25 amps
  • Dimensions: 32" D x 27" W x 38" H
  •
    DK25S - List: $3575
    EZ Price: Call for Quote - 1-800-408-0040


    Custom large sizes available (contact us for a quote)
    DK20SP



    Floor Stand Option (with casters)

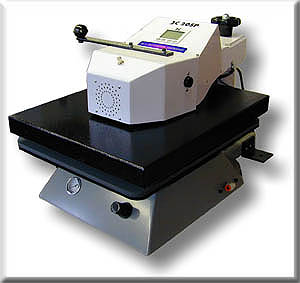

    DK20SP
    DK20SP

    Digital Knight 16" x 20"
    Air Operated Swinger

    The DK20SP is an air-operated automatic table top swing-away heat transfer press. The DK20SP provides a production oriented heat press with the benefits of push button operation, fully digital temperature and time control, and solid casting design with an affordable automatic heat press price. It is available in a 16" x 20" heater block size.

    The DK20SP utilizes the same Digital Knight control system as the DK20S series and operates with a smooth swing-away fashion. For demanding press runs and super consistant results the DK20SP is an ideal press for meeting requirements that go beyond what a manual transfer press and operator can handle.Fully digital temperature control.
    DK20SP Specs:
  • Automatic digital timer
  • Digital pressure/height gauge
  • 70 programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwinding™ heater technology
  • Accommodates materials up to 1" thick
  • Temperature readout accuracy +-2° F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon coated heat platen
  • Lifetime warranty on heat platen
  • 3 year warranty on control
  • 1 year warranty on entire press
  •
  • Weight: 220 Lbs
  • Electrical: 1800 watts / 120 volt 15 amps. Also available in 220 volt 8 amps (add $35)
  • Dimensions: 32" D x 27" W x 38" H
  •
    DK20SP - List: $2,550
    EZ Price: Call for Quote - 1-800-408-0040

    OPTIONS:
    Floor Stand (with casters) - List: $295   EZ Discount Price: $283
    DK20
    DK25SP

     DK20SP
    DK25SP

    Digital Knight 20" x 25"
    Air Operated Swinger

    The DK25SP is an air-operated, automatic 20x25 Oversized swing-away heat press with a state-of-the-art control system and heavy-duty solid steel welded framework. The smooth automatic pressing and push-button activation provides a productive, fatigue-free operation.

    The extended 20x25 size of the heat platen is perfect for sublimation and large format materials pressing. The heat platen uses SuperCoil-Microwinding™ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times. The controller utilizes an easy to read oversized-digit LCD display to show time and temperature simultaneously, and the temperature readout is accurate within +-2°. The operator can use the 70 programmable presets for saving common application settings, and the press features a highaccuracy pressure regulator and pressure gauge for specific psi settings. The press is adjustable to accommodate materials from fabric thickness all the way up to 1" thick substrates!

    This 20x25 sized air-operated press includes a stand and lockable heavy-duty casters as well. For the ease of high-pressure air operated operation and 20x25 platen sized pressing area, the DK25SP is the ideal solution.

  • Automatic digital timer
  • Digital pressure/height gauge
  • 70 programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwinding™ heater technology
  • Accommodates materials up to 1" thick
  • Temperature readout accuracy +-2° F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon coated heat platen
  • Heavy duty floor stand with lockable casters
  • Lifetime warranty on heat platen
  • 3 year warranty on control
  • 1 year warranty on entire press
  •
  • Weight: 480 Lbs
  • Electrical: 4500 watts / 220 volt 20 amps.
  • Dimensions: 36" D x 36" W x 48" H
  •
    DK25SP - List: $4,550
    EZ Price: Call for Quote - 1-800-408-0040
    DK25SP
