Epson SureColor F3070 Printer
- Overview and Specifications -

Return to F3070 Main Page

Dimensions

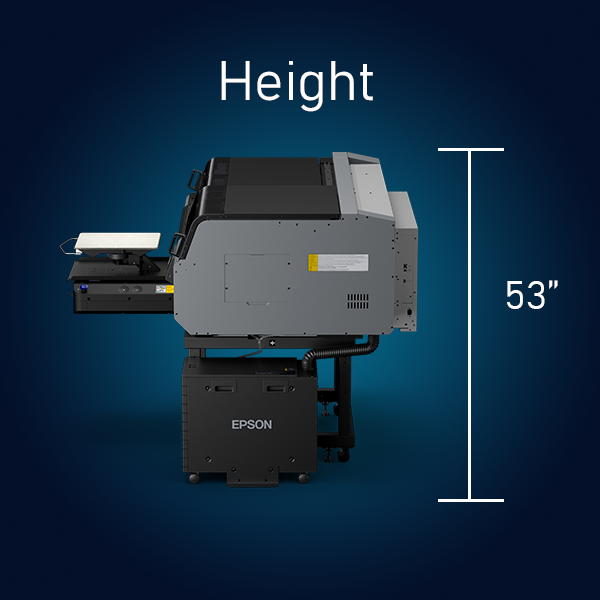

F3070-height

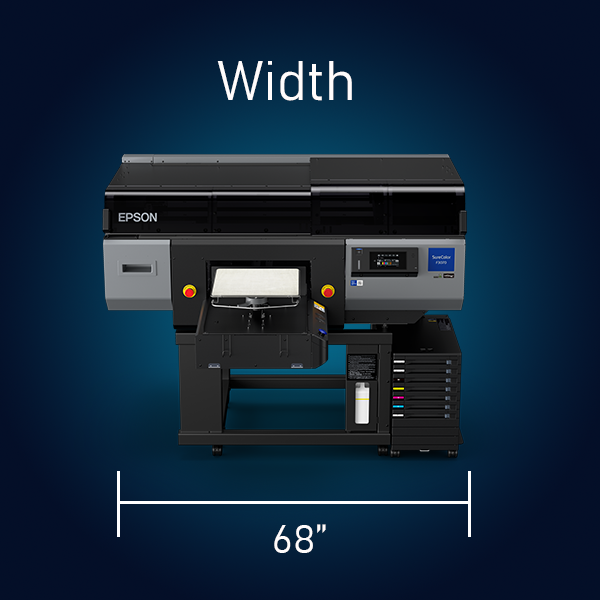

F3070-width

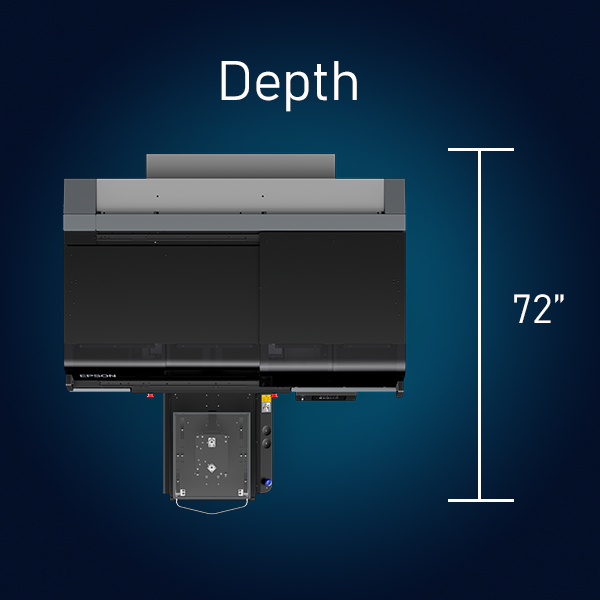

F3070-depth

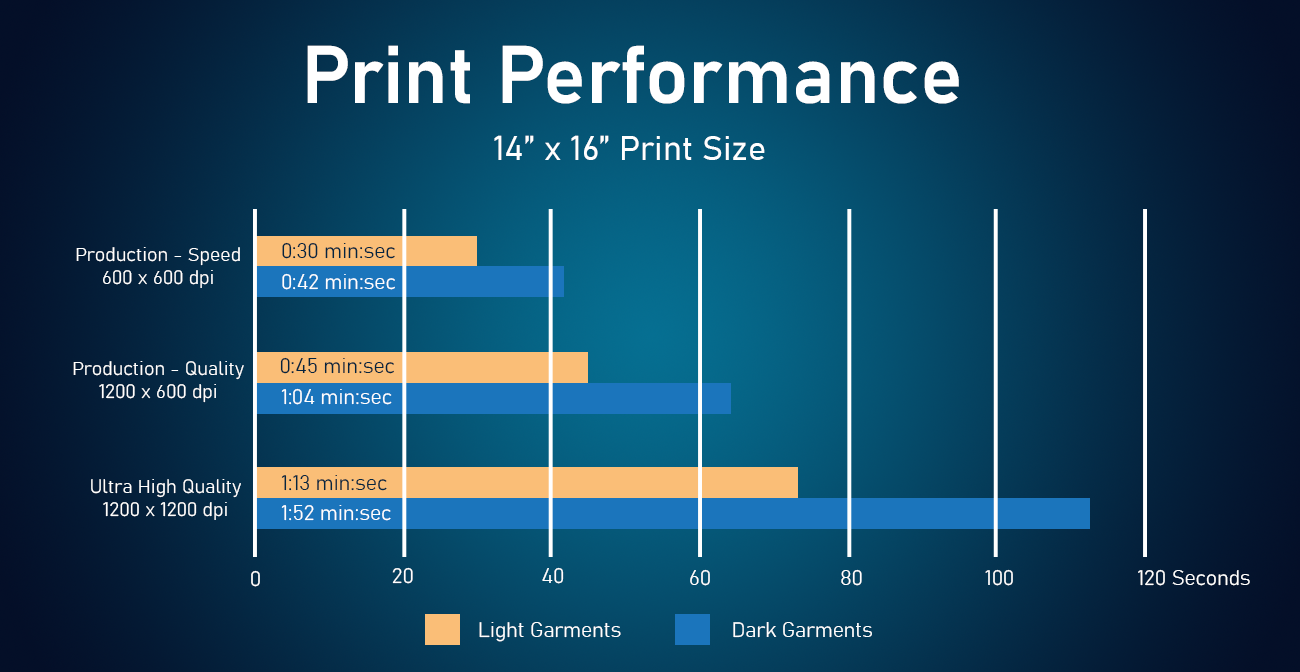

F3070 Performance Graph
F3070 shirt
F3070 side

Connect to standard available 120V outlet Power Requirements:

  • Number of connections: 2 total – Printer x 1, Ink System x 1 Two power cords included (120V NEMA 5-15P to IEC 320-13C)
  • Voltage: 100 – 240v AC, 50/60 Hz
  • Power Consumption
    Printing: 168 W
    Ready: 111 W
    Sleep: 20 W

Use of a UL Certified surge protector is recommended

Garment Thickness Optimization

thick-1
thick-2
thick-3

Automatic Garment Thickness Optimization

• Garment thickness measured by 6 sensors during the loading process every 1/100th of a second to create a garment height profile

• Printer determines the garment minimum, average, and maximum heights

• Printhead carriage physically moves up/down to the optimal height as desired by the media settings (min, avg, or max thickness)

• The process is automatic and performed seamlessly in parallel with other pre-print tasks

The Future of Production Garment Printing!

Bring a new level of productivity and efficiency to your printing business with the all-new SureColor F3070 industrial direct-to-garment printer. The first of its kind to meet the demanding needs of high-production print shops, the F3070 was built from the ground up to deliver professional-quality, one-pass prints at industrial-level speeds. Featuring automatic garment thickness adjustment, easy user maintenance features and a new dual 2.6" PrecisionCore® printhead, this innovative direct-to-garment printer maximizes productivity and reduces downtime for fast, cost-effective print production. Coupled with the first bulk ink system integrated into an Epson® direct-to-garment printer, the F3070 can produce a full-size t-shirt in moments, allowing print shops to print hundreds of shirts per day, all at a remarkably low cost of ownership.

Dual PrecisionCore printheads
  • With 16,000 nozzles delivering industrial-print-quality output at impressive production speeds
Replaceable bulk ink packs
  • For less frequent ink refilling and lower costs
Automatic garment thickness detection
  • adjusts printhead height and optimizes print quality without user intervention
Epson UltraChrome® DG Inks
  • Produce durable, vibrant prints with the same cost for color and white inks
Low maintenance downtime
  • With dedicated cleaning solution channels and fabric head wiper system
Easy-to-use, all-new quick-load platen
  • Reduces traditional hoop platen load times
Epson pretreatment solutions
  • For natural fiber and polyester fabric printing
Updated Garment Creator software
  • For macOS® and Windows® with cost estimator, text tools, hot folders and an automation SDK
Scale production capability with additional printers
  • Featuring an easily repositionable compact design that operates on standard 120 V power
Optimize workflow efficiency with the integrated print stand
  • Featuring casters for easy repositioning and standard mounting points to add accessories
Print:

Printing Technology: Dual advanced PrecisionCore microTFP 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology

Minimum Ink Droplet Size: Variable Droplet Technology

Maximum Print Resolution: 1200 x 1200 dpi

Nozzle Configuration: 8,000 White ink print nozzles; 6,400 color ink print nozzles
Ink:

Ink Type: UltraChrome DG

Ink Palette: Cyan
Magenta
Yellow
Black
White Ink Configuration: 5-color: C, M, Y, K, W
General:

Operating Systems: Windows® 10 and 8.1, macOS 10.12 (Sierra) or later

System Requirements: • Garment Creator Software Minimum PC Requirements: Multicore processor, 2GB RAM, 32GB Free Storage
• Recommended PC Specifications: Intel Core i7 8th generation processor, 16GB RAM, 32GB free SSD storage

Temperature: • Operating: 59° to 95°F (15° to 35°C)
• Operating (recommended): 59° to 77°F (15° to 25°C)

Humidity: • Operating: 20 – 80% (no condensation)
• Operating (recommended): 40 – 60% (no condensation)

Eco Features: • Oeko-Tex ECOPASSPORT certified
• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay® Transport Partner

Country of Origin: Indonesia
