Strong • Fast • Precise

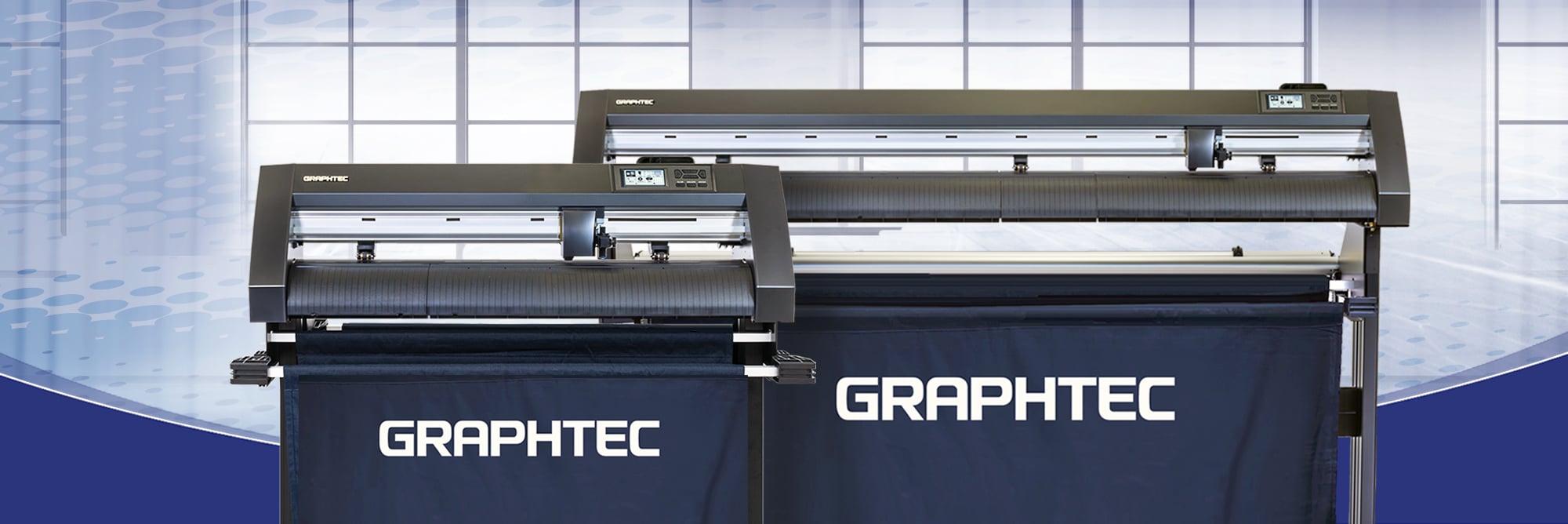

GRAPHTEC FC8600 Series Cutters


Accurately cuts graphics printed on high intensity reflective, ultra gloss, and textured media.

FC8600 Series high-performance roll feed cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users. Graphtec FC8600 vinyl cutter sets an industry standard for quality and durability, and is now an even more powerful tool for any professional in the search of the highest-quality and most technically-advanced cutter on the market.

Print & Cut Bundles Deals

Epson has teamed up with Graphtec & Onyx to bring you a
premium end-to-end Print & Cut solution at an amazing value.


SureColor S-Series Printers


Graphtec Cutting Plotter


Onyx RIP Software

Learn more

Models & Sizes

Model Sizes List Price
FC8600-60 24" Wide Cutter $3,295.00
FC8600-75 30" Wide Cutter $4,195.00
FC8600-100 42" Wide Cutter $5,195.00
FC8600-130 54" Wide Cutter $5,995.00
FC8600-160 64" Wide Cutter $6,895.00

Please contact for best price!


PERF CUT Enabled High Performance Cutters Finish The Job

With its included perf cut enabled custom tool settings - you have the ability to perforate cut all the way through your pre printed vinyl media creating pop-out, full-color stickers and decals without damaging your blade or cutting plotter machine.

Blade position 1 is for contour kiss cutting of vinyl media. Blade position 3 allows the blade to cut all the way through the media into the channel without damaging the cutting strip and blade.

Perforation cutting is performed by controlling the cutting force instead of blade up/down movements, increasing throughput. This is perfect for cutting separation lines for tearing out labels, fold lines for POP signs, and others.

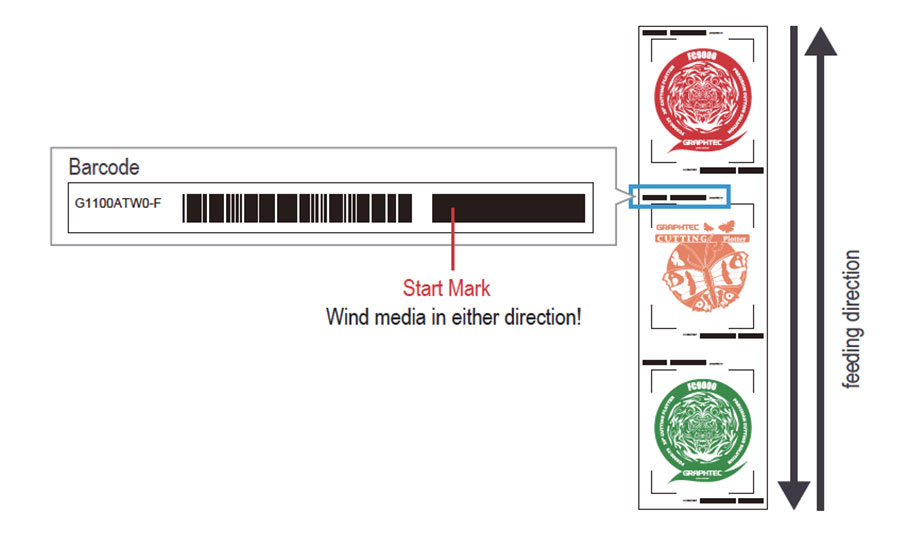

Auto Mark Detection

The first registration mark is automatically detected within a wide search area; this eliminates the need to manually move the sensor near the registration mark position. Subsequent marks are automatically located which improves the operation of the registration mark searching.

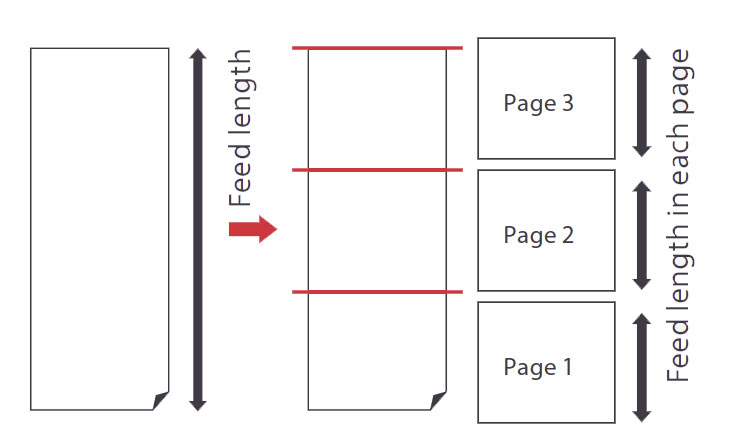

Segment Area Compensation

A 4-point axis alignment is performed for each segmented area.
In Normal Mode, this is performed by reading the marks in the middle of the feeding direction for the entire graphic and then cutting the entire graphic, providing high-precision alignment for long length Print & Cut applications.

In the new Sequential Mode, contour cutting is performed sequentially in each segmented area. Media movement is limited to the smaller area being cut, improving accuracy and tracking for heavier media or media that has been laminated.

  • Normal mode is available when Graphtec Studio, Graphtec Pro Studio, Cutting Master 2/3/4, or Plotter Controller software is used.
  • Sequential mode is available when Graphtec Studio (ver. 2.1.200 or later) or Cutting Master 3 (ver. 2.1.211 or later) is used.
  • This function is available in firmware version 2.10 or later.
