Geo Knight Cap Press


The Digital Knight line of transfer presses is the culmination of over four decades of perfecting the design, mechanics and technology of heat press machinery. All of these presses by Geo Knight & Co boast heavy steel welded frameworks built to hold up over years of heavy use and stress.

At the heart of these machines is a state of the art digital microprocessor control and proprietary heat control circuit field tested beyond 10 million heating cycles. This allows for an unprecedented 3 year warranty on the control. The Digital Knight controller features an oversized LCD display for easy reading of time and temperature readings. The controller has a surprising array of extremely useful features, such as user programmable presets, automatic timing, finished cycle recording, selectable alarms, and much more. Overall, the extremely accurate control and intuitively easy to use interface makes for a reject-free production enviroment.

The heaters on all platens of the Digital Knight line use an exclusive coil winding technology for dramatically superior evenness and speed of heating. Compared to traditional heating methods, the Geo Knight & Co SuperCoil-Microwinding heater technology outperforms everything else. Of course, all heat platens are lifetime warrantied.

dk7

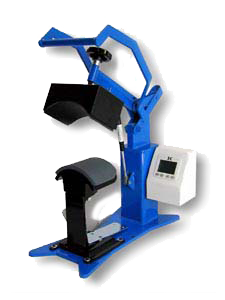

DK7 Digital Knight 4" x 7" Cap Press

$571

List Price - $595

  • Fully digital temperature control
  • Automatic digital timer
  • 70 programmable presets
  • Solid steel welded framework
  • Optional interchangeable curved forms
  • Gas spring lifter
  • Cap hold-down device
  • Weight: 45 Lbs
  • Electrical: 350 watts / 120 volt 3 amps. Also available in 220 volt 2 amps (add $35)
  • Dimensions: 38" L x 20" W x 16" H
  • Temperature readout accuracy +-2° F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon coated curved heat platen
  • Lifetime warranty on heat platen
  • 3 year warranty on control
  • 1 year warranty on entire press

DK7T Digital Knight 4" x 7" Twin Cap Press

$864

List Price - $900

  • High production twin station design
  • Fully digital temperature control
  • Automatic digital timer
  • Digital pressure/height gauge
  • 70 programmable presets
  • Solid steel welded framework
  • Optional interchangeable curved forms
  • Gas spring lifter
  • Weight: 85 Lbs
  • Electrical: 350 watts / 120 volt 3 amps. Also available in 220 volt 2 amps (add $35)
  • Dimensions: 22" L x 22" W x 22" H
  • Cap hold-down device
  • Temperature readout accuracy +-2° F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon coated curved heat platen
  • Lifetime warranty on heat platen
  • 3 year warranty on control
  • 1 year warranty on entire press
dk7twin
