DK32AP
Digital Knight 26" X 32" Automatic Press


maxi•press

Price: $6250

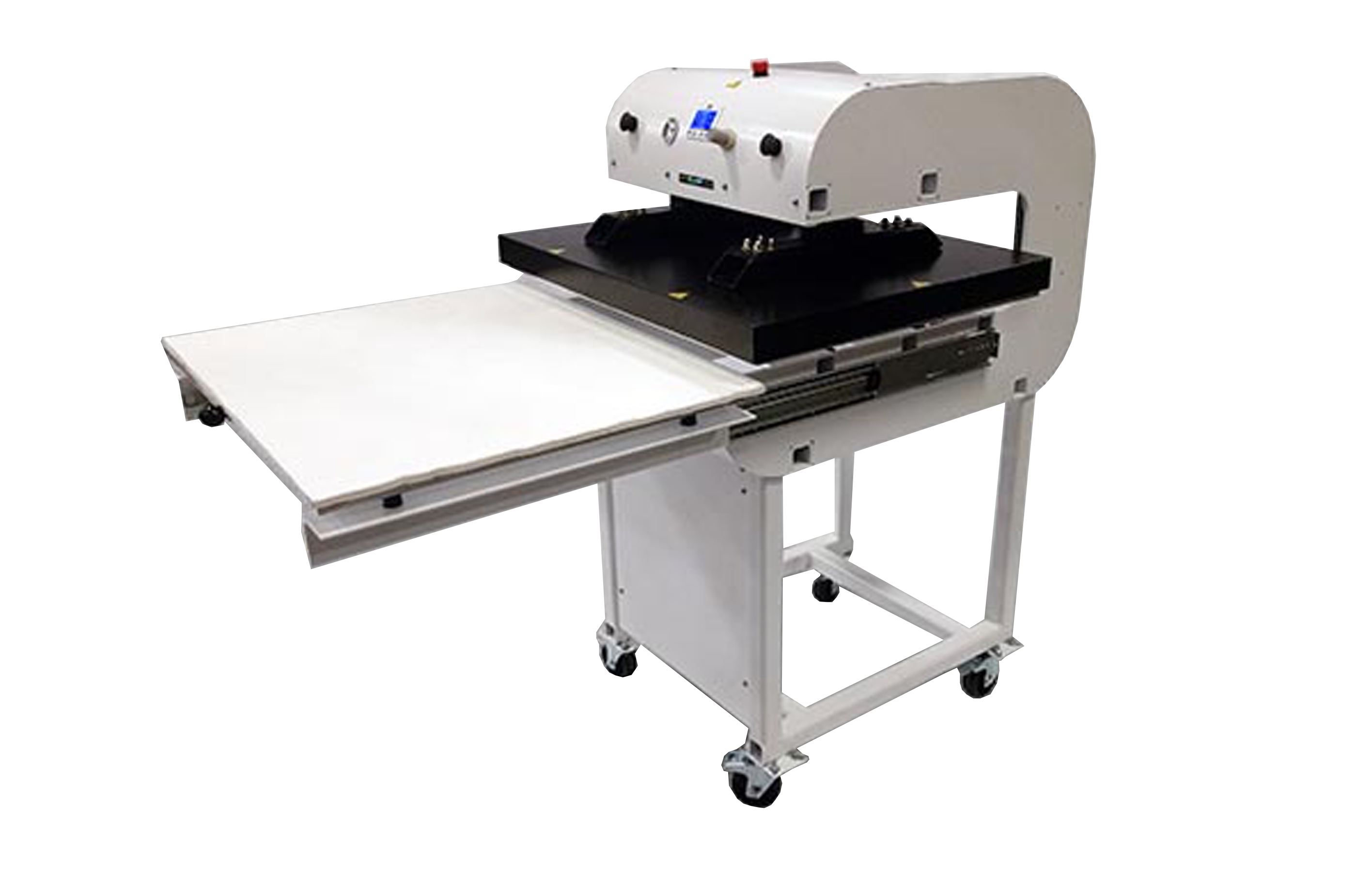

The DK32AP is an air-operated automatic large format 26" x 32" heat transfer press. The DK32AP provides production-oriented pressing with push button operation, fully digital temperature & time control, and solid steel welded frame design with an affordable automatic large format price.

The DK32AP utilizes the same Digital Knight control system, heating elements, and pressure capability as the MaxiPress AIR series, and operates with a smooth drawer-style front-loading motion & high pressure top-down pneumatics with fully adjustable PSI control.

The DK32AP is the ideal press for meeting 24"-width printer output and other oversized transfer requirements that are far larger than what 20x25 models can accommodate, with a price tag a fraction of the cost of the MaxiPress line. Capable of perfectly pressing fabric, complex garments, metal, wood, ceramics, glass, and more... The DK32AP is the industrial-grade large-format solution between smaller platens and the MaxiPress.

Features

  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 6000 lbs max
  • Self leveling pressure system
  • 70 Programmable presets
  • Solid steel welded framework
  • SuperCoil-Microwinding™heater technology
  • Ultra thick heater block assembly
  • Solid loading bed with ultra thick nomex padding
  • Accommodates materials up to 2" thick
  • Dual button easy-activate safety circuit
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Heavy duty locking casters for easy movability and solid foundation support

WARRANTY

  • FREE LIFETIME Tech Support!
  • Full one year warranty on heating element, controls and entire press

SPECS

  • Air Compressor Required (min): 7gal, 1cfm, 100psi, 3/8" line
  • Net Weight: 790 Lbs
  • Electrical: 5600W / 25A / 220V (1PH)
  • Shipping Dims: 38" D x 40" W x 60" H

394-TS 16" x 20" Twin Shuttle Press

  • Air Compressor Required (min): 15gal, 2cfm, 100psi, 3/8" line
  • Weight: 850 Lbs
  • Electrical: 3600W / 17A / 220V
  • Shipping Dims: 60" W x 48" D x 55" H

List Price: $6500.00

Call for quote: 1-800-408-0040

394-MTS 20" x 25" Twin Shuttle Press

  • Air Compressor Required (min): 15gal, 2cfm, 100psi, 3/8" line
  • Weight: 950 Lbs
  • Electrical: 4500W / 21A / 220V
  • Dimensions: 60" W x 48" D x 55" H

List Price: $7795.00

Call for quote: 1-800-408-0040

Features

  • Twin shuttle dual workstations for fast, high speed production by a single operator.
  • Total applied force of 12,000 lbs max (compressor req)
  • Digital Knight integrated state-of-the-art control system
  • Open access emergency release buttons.
  • Heat platen, wiring, and all controls are mounted on a solid stationary four-post channel frame support to insure minimal maintenance.
  • Smooth roller bearing slide rail with 3/8" aluminum tables: independent surrounding drape tray for garment overhang.
  • Permanent mounting on casters for easy loading, unloading and in house movement.
  • Built-in safety alarm and circuit protection OSHA approved dual safety operation controls.
  • Lifetime Warranty on heat platen, Full one year warranty on machine.
  • Machine provides ability to apply a variety of special effects decorating as well, such as multimedia foiling, sublimation, hot-split transfer, color copier imaging, and deep embossing.
  • Custom sized & shaped bottom table castings available for specific layout requirements.
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-110 PSI range
  • 70 Programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwinding™heater technology
  • Accommodates materials up to 1" thick
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done

Warranty

  • FREE LIFETIME Tech Support!
  • 1 year warranty on parts
