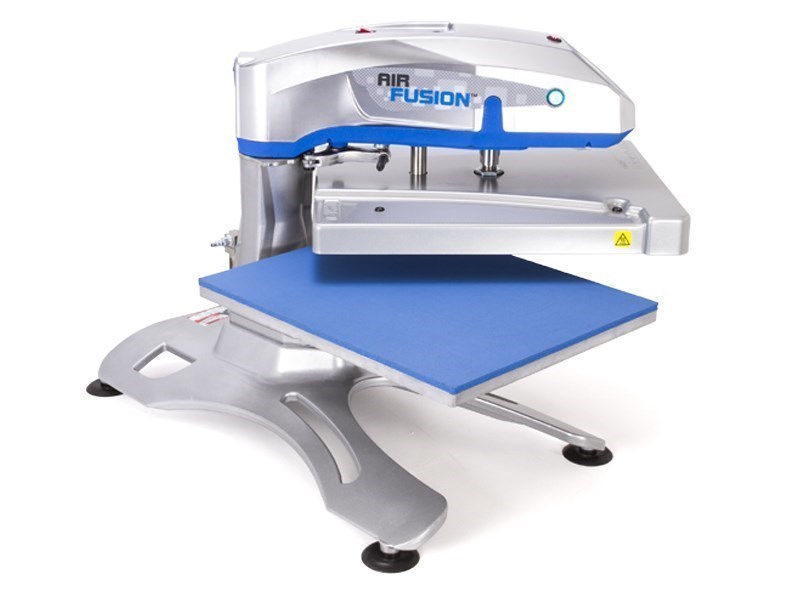

Hotronix Air Fusion IQ Heat Press

Smarter Air-Powered Technology. Faster Production.

Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16" x 20" heated upper platen and swing motion, for a heat-free workspace. Available in tabletop or adjustable-height pedestal stand models.

Pricing

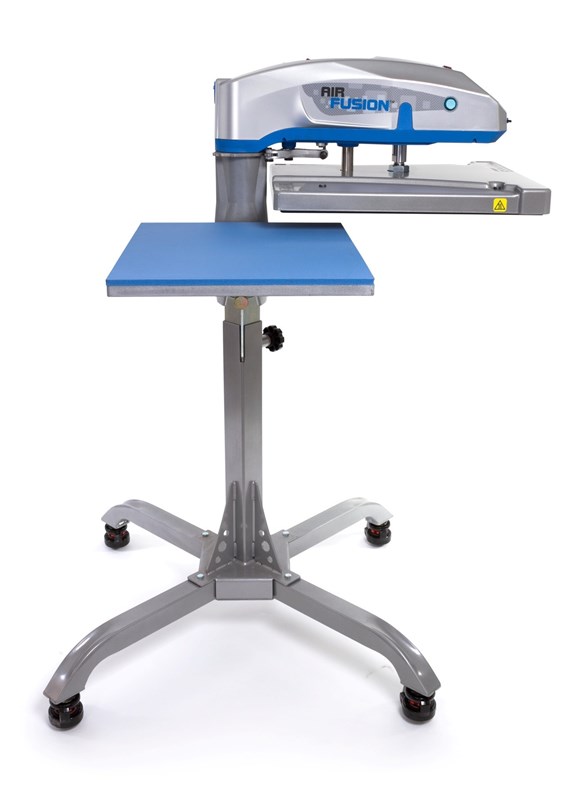

Air Fusion IQ® Pedestal - $5,150.00 retail price

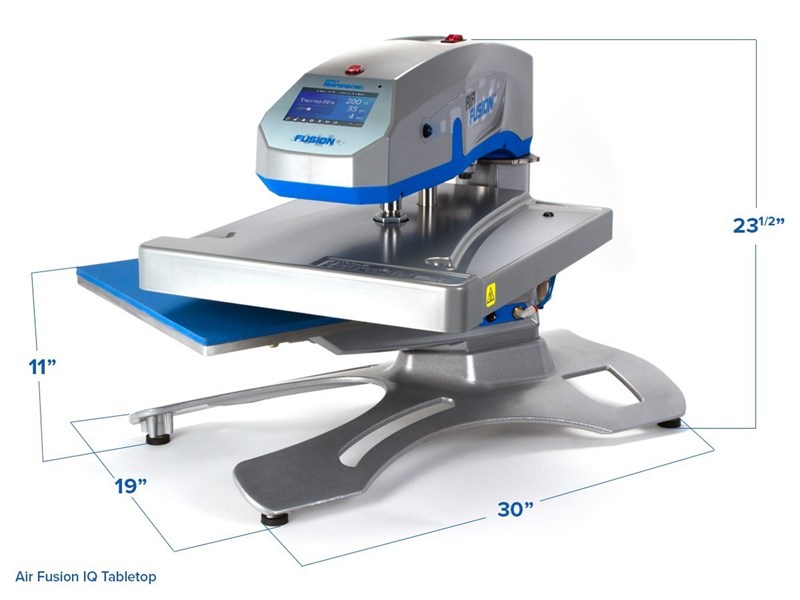

Air Fusion IQ® Table Top (120V) - $4,650.00 retail price
Air Fusion IQ® Table Top (240V) - $4,650.00 retail price

Call for Best Price or Call to Order:
800-408-0040 or 201-797-1504

  • Exclusive Auto-Adjust Pressure™ automatically adjusts to the thickness of the item being printed
  • Full Threadability™ on the lower platen: position the garment, rotate, and decorate any area
  • Auto open, auto swing design, with a foot pedal reduces fatigue
  • Swing motion allows for a heat-free workspace
  • Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
  • Data interface port allows for future software upgrades
  • User-safe two-hand push-button operation
  • 120 PSI for high-pressure applications
  • Optional quick-change platens; no tools required
  • Program up to four different pressure and time settings
  • Die pressure cast 365 aluminum corrosion-free framework
  • Requires air compressor (not included) with minimum: ½ horsepower and 2.5-gallon hold tank. Uses 2.3 CFM
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 7.5 amps; 1800 w
  • Must have dedicated circuit breaker
