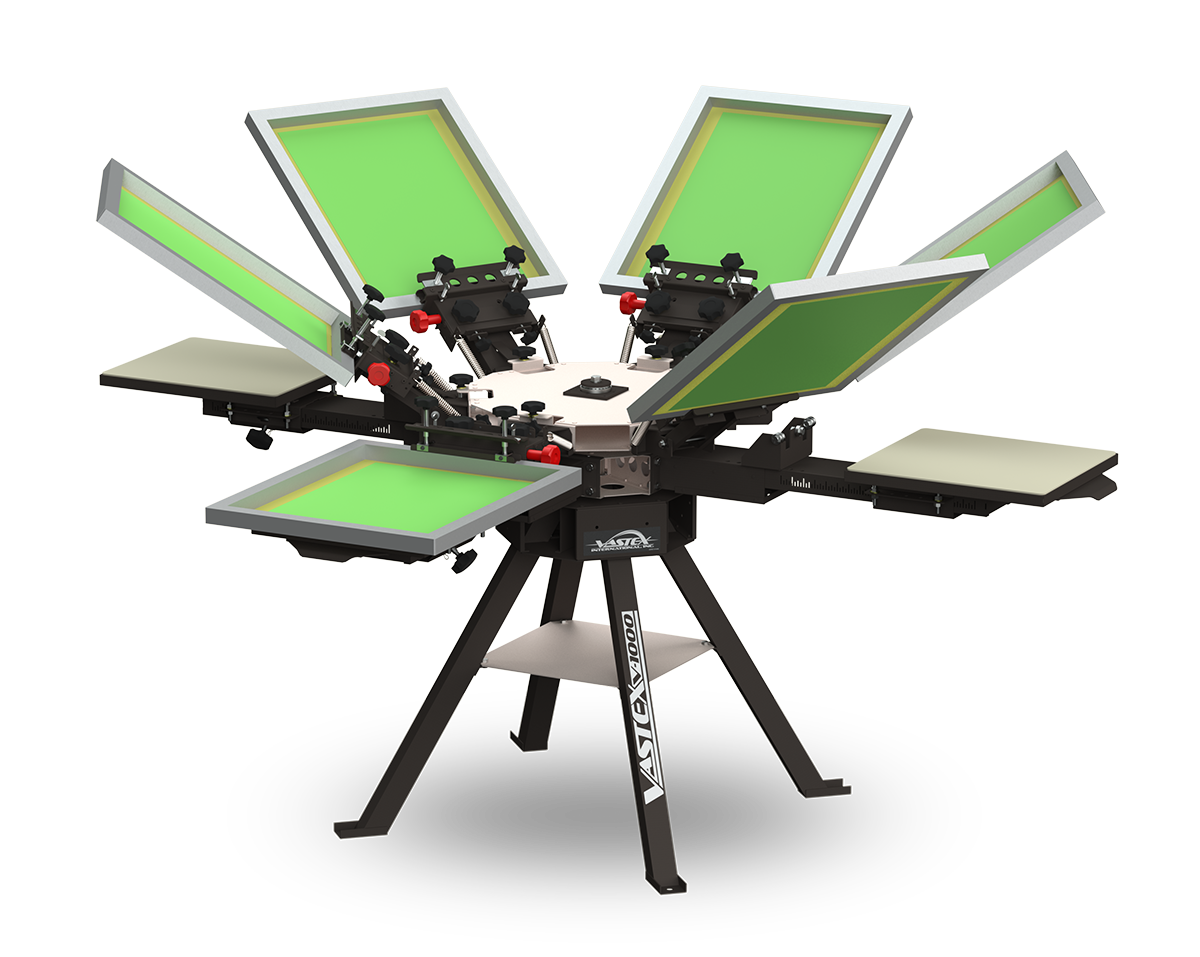

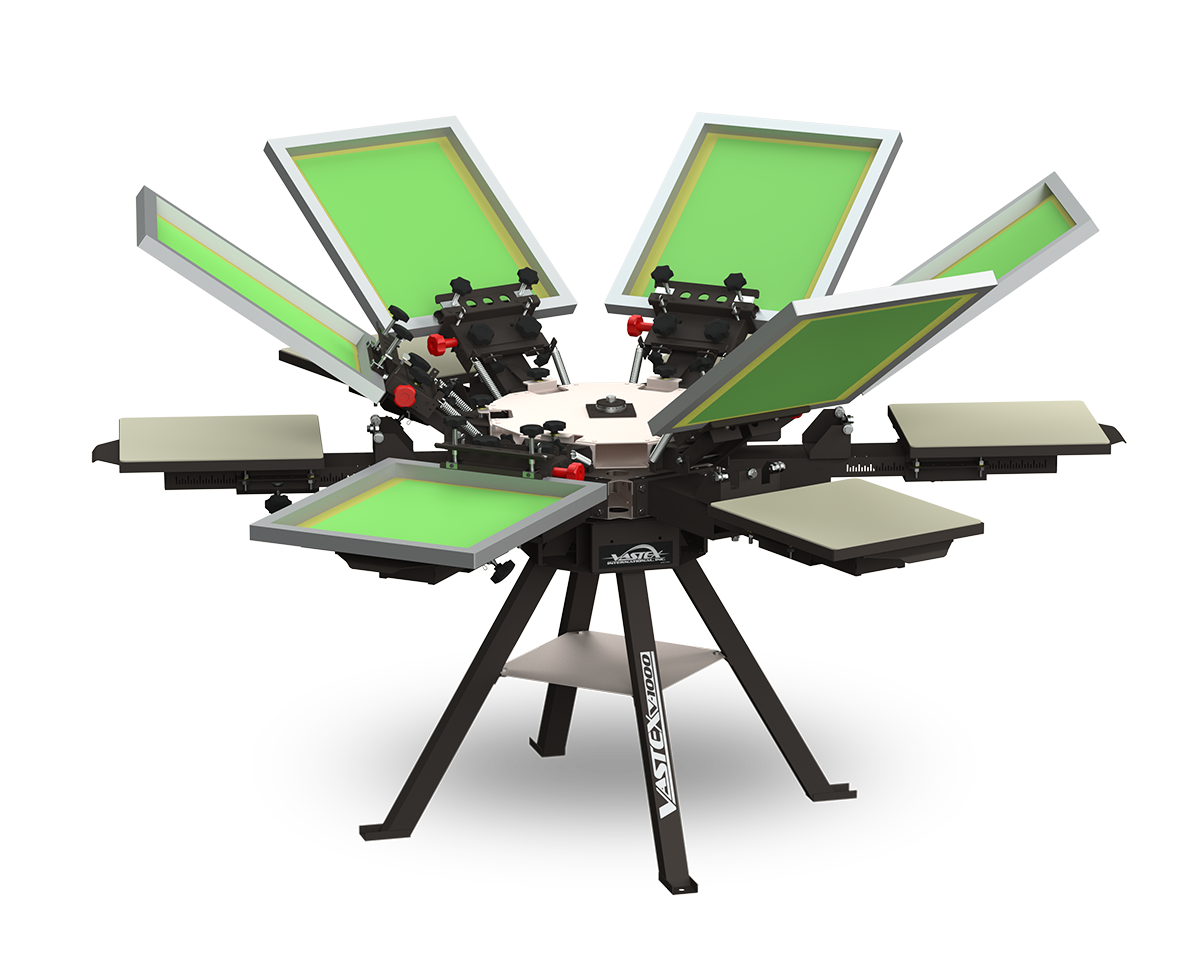

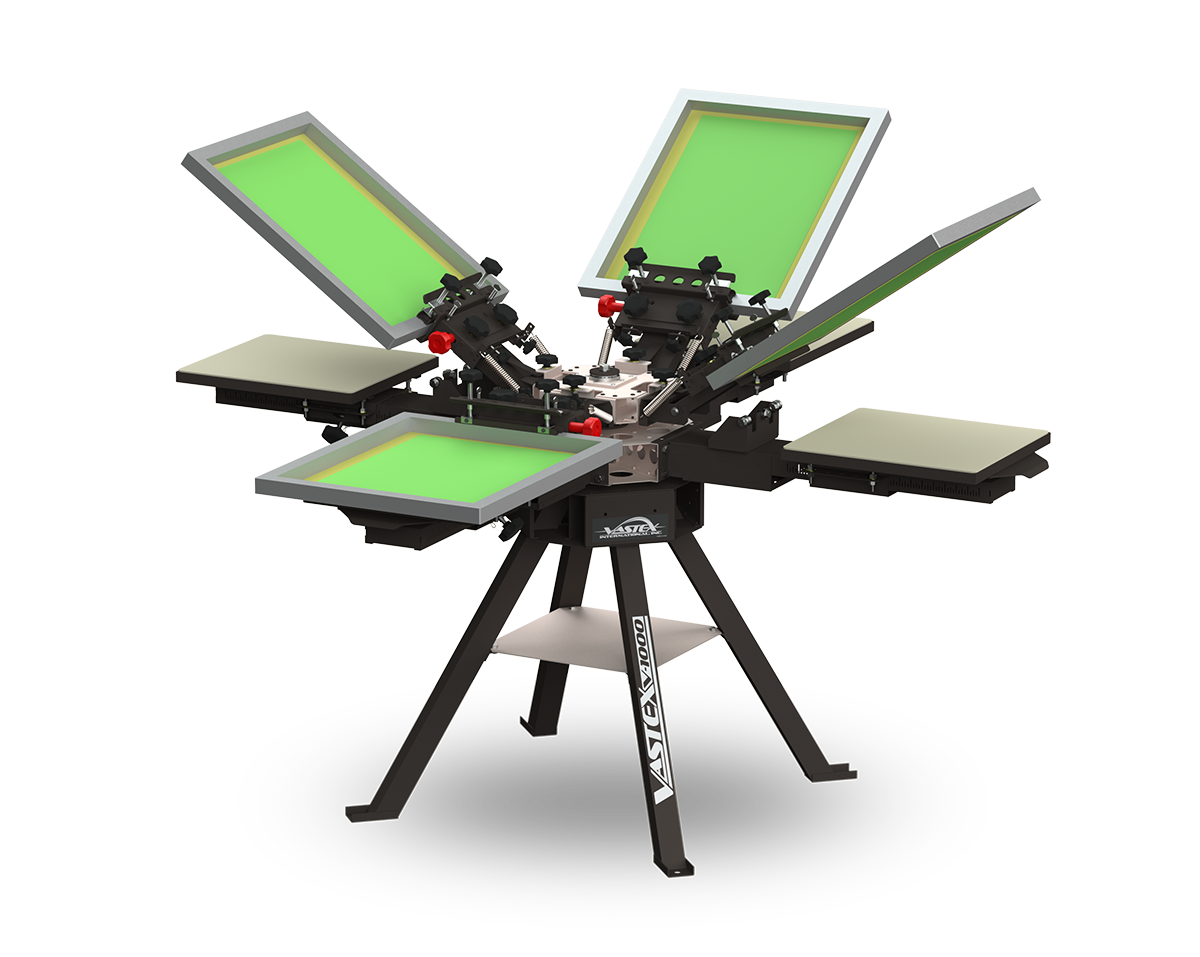

V-1000

Vastex engineered the V-1000 manual garment printer to meet the needs of the commercial-grade screen printer. The V-1000 uses the industry's most unique floating head design. Accurate registration can be achieved without the high cost associated with machines of this capacity.

V-1000 screen printing presses are offered in tabletop and floor standing models from one-station/ one-color to 8-stations/ 8-colors in increments of one station and/or one color. Fully expandable, they allow growing

shops to start small and add stations and print heads to boost output or achieve special effects.

Optional screen printing utility carts for tabletop models are equipped with screen shelves, an ink shelf and locking casters. To complete your commercial-grade shop, consider the new E-200 LED exposure unit with a vacuum pump and long-lasting LED light pack, the F-Series, 18" sq. flash cure, and the D-100, 18" wide conveyor belt dryer.

LONG LASTING

Steel Pallets w/ rubber tops - interchangeable with the V-2000

ACCURATE

Micro-registration

PRECISE

Holds accurate multicolor printing registration

INNOVATIVE

Floating Head, 3 point bearing lock allows multiple heads down

ADJUSTABLE

6 way head leveling adjustment

CAPACITY

Holds up to 21" x 28" (51 x 61 cm) screens

GUARANTEED

2 year warranty on manufacturer's defects

SHIPS UPS

Can even ship UPS in multiple boxes

EXPANDABLE

From 1 table, 1 color (1x1) to 8 table, 8 color (8x8)
