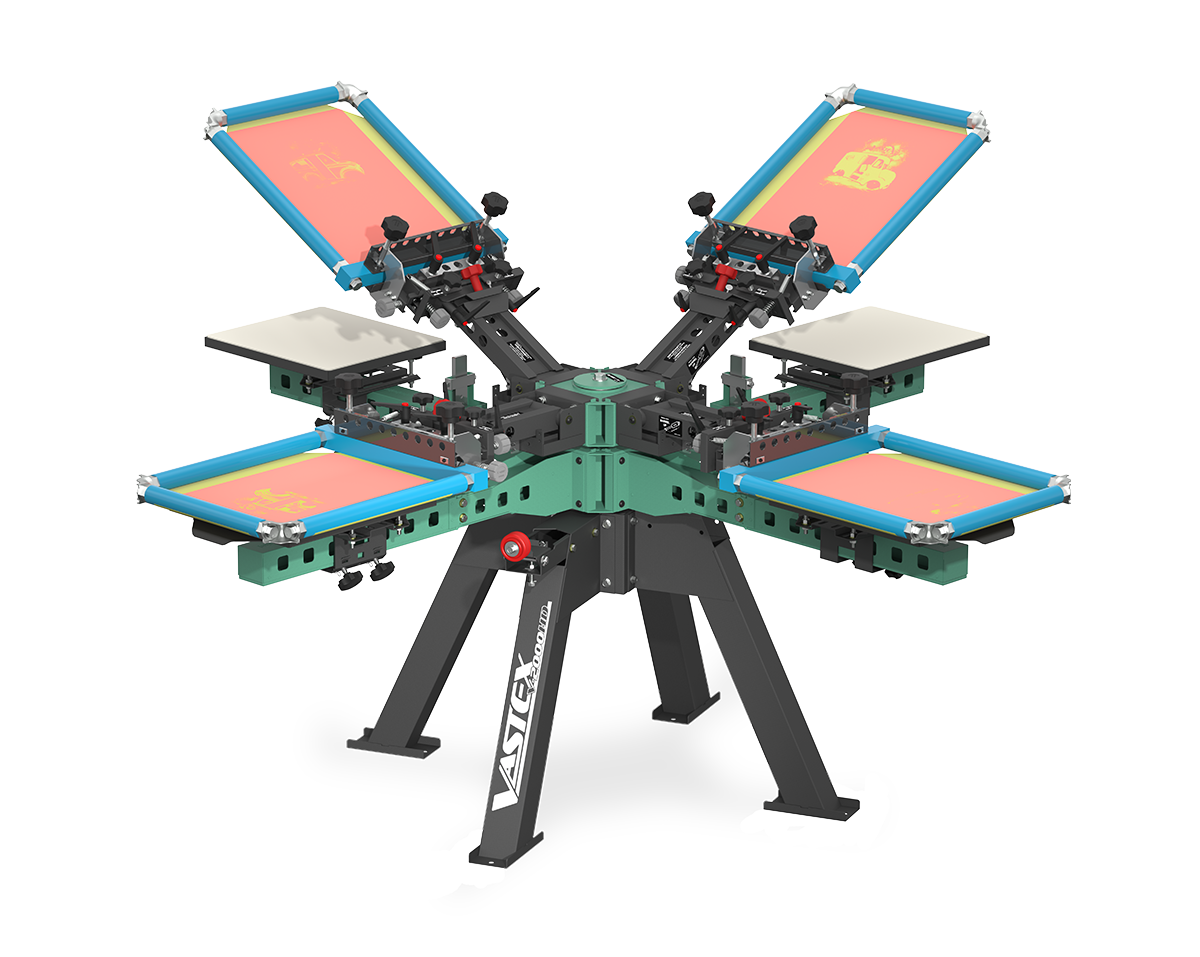

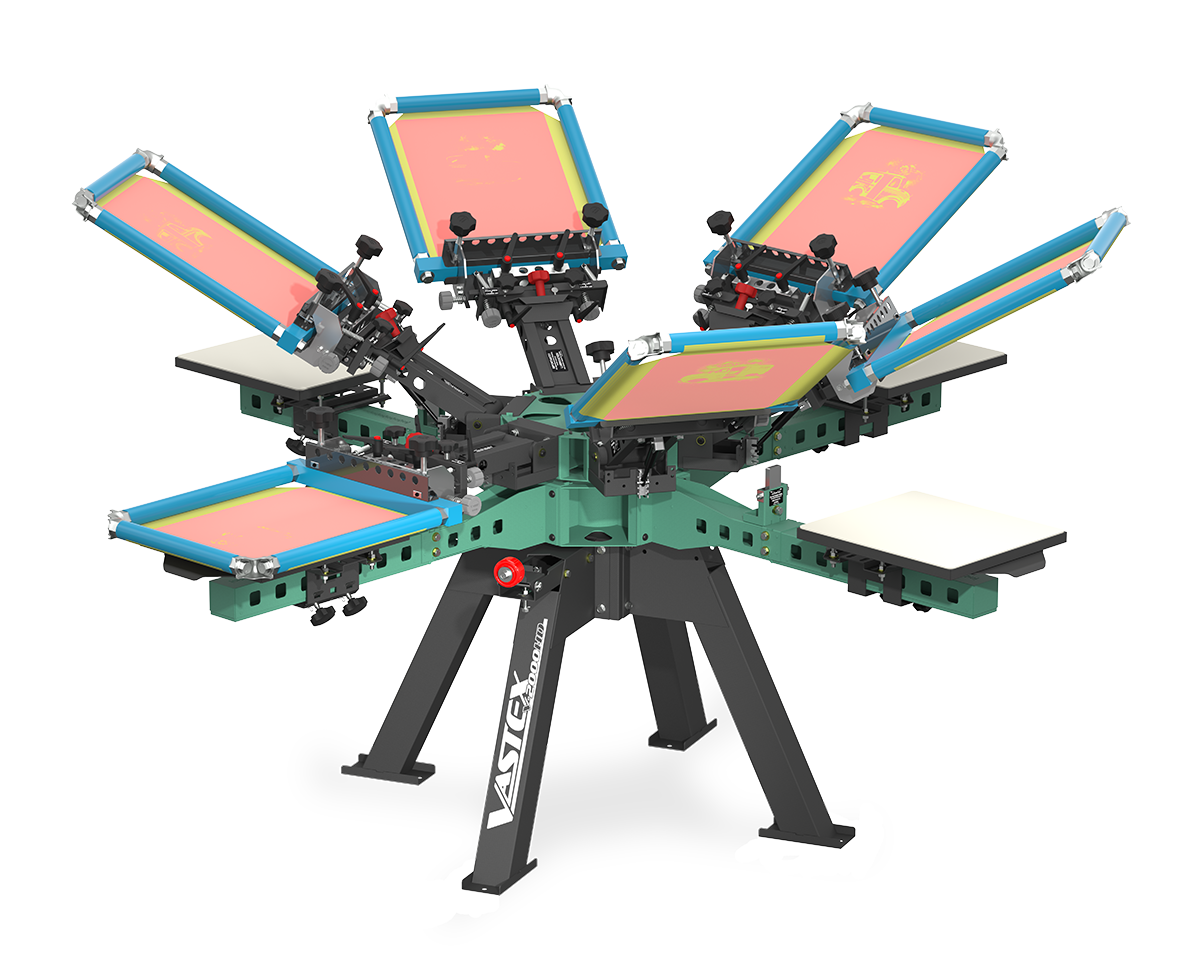

V-2000HD

The Vastex V-2000HD Series of heavy-duty manual screen printing presses offers the screen printing professional an unequalled range of advanced capabilities that decrease set up time, improve registration accuracy and increase productivity.

These are industrial-strength machines in every respect, with steel-tube legs, 3 in. (76 mm) square steel rotor arms, heavy-gauge steel rotor assemblies, and never-warp steel pallets, with all critical moving parts — including registration wheel locks — gliding on ball bearings.

V-2000HD screen printing presses are offered in models from one-station/ one-color to 10-stations/ 10-colors in increments of one station and/or one color. Fully expandable, they allow growing shops to start small and add stations and print heads to boost output or achieve special effects.

The V-2000HD heavy duty print head allows the industry's fastest set-up and micro-registration, and accepts clamp-on DiGiT™ athletic numbering jigs and side-clamp accessories in 20 seconds.

RELIABLE

2 year warranty on manufacturer's defects

100% WRENCH FREE ADJUSTMENTS

Allows independent head leveling, "off-contact" adjustment, micro-registration with zero backlash, and complete removal or installation of the print head in seconds.

HEAVY DUTY

Never warp steel pallets with rubber tops and the new corner clamp pallet arm

SMART

Gas lifters with 16 position variable lift strength

ADJUSTABLE

6 way screen leveling

PRECISE

Holds accurate multicolor printing registration

ACCURATE

Embedded registration bearings (close to the screen, stays clear of spray tack)

FLEXIBLE

Prints all heads down

STRONG

12" (30 cm) wide steel rear screen clamps joined by a steel clamp bar for off center clamping 2.75" (6.9 cm) precision ground center shaft

DURABLE

3" (7.6 cm) square steel rotor arm with ruler indicator

INNOVATIVE

Elevated Pallets — no need to stretch shirts over the arm (also compatible with quick stretch jacket attachment)

EXCLUSIVE

Zero backlash bearings on screen arm pivot

CONVENIENT

Adjustable micro clamp levers

EXPANDABLE

Upgrade at any time from 1 station 1 color tabletop to 10 station 10 color rotary floor press!
