Infared Flash Cure Units

F-Series Entry Level and Mid Level Flash Cure Units

High wattage and close coil density heater, for greater heater surface consistency.

Powerful heaters with built-in heat shields allow Vastex flashes to be set closer to your garment, which increases efficiency and productivity.

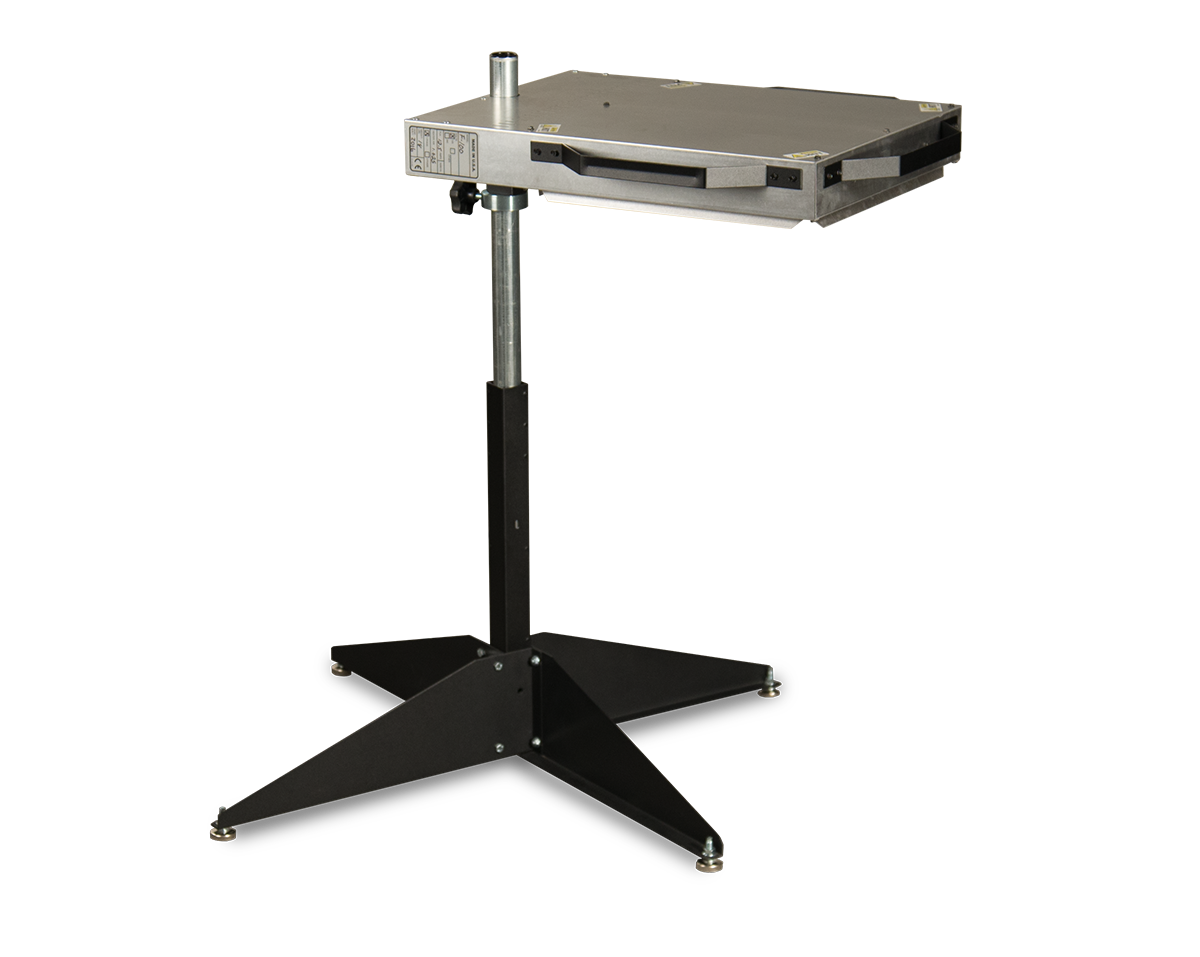

F-100

Entry Level FLash Unit

  • 5 Year Heater Warranty
  • 1,625 Watt, 120V or 240V, IR Heater
  • On/off power switch
  • Heavy duty side handles
  • Head leveler to adjust the heater parallel to the pallet
  • Heat shields for even heater temperature
  • International power cords available

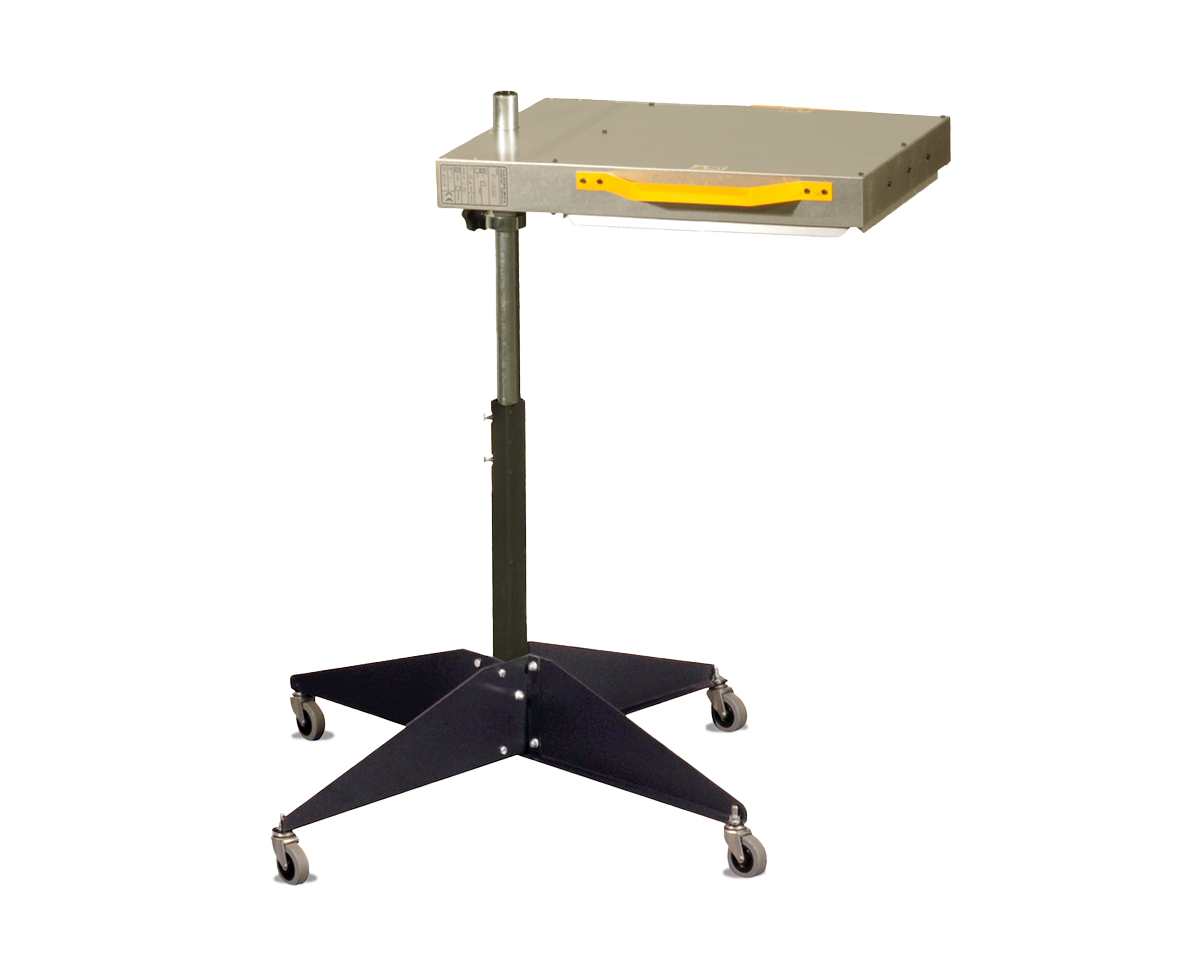

F-1000

Mid Level Flash Cure Unit

  • 5 Year Heater Warranty
  • 1,950 Watt/120V or 2,600 Watt/240V, IR Heater
  • Heat control with power lights
  • Heavy duty side handles and locking wheels
  • Head leveler to adjust the heater parallel to the pallet
  • Heat shields for even heater temperature
  • International power cords available
Brochure & Specifications
Operation Manual

Call for more information or to order: 201-905-1000

Operation Manual

RedFlash - High-output Infrared Flash Cure Unit with digital controls

The RedFlash™ series features a low profile head of only 2.75 in. (7 cm), and a cooling fan that keeps the outer surface safe to the touch and forms an air curtain around the perimeter to maintain uniform temperatures for edge-to-edge consistency.

The digital controls offer fine adjustment of heat from zero to 100% for repeatable results, diagnostic indicator lights for simplified monitoring, and a high-capacity solid-state relay for long-term reliable service.

RELIABLE

3 Year Warranty

POWERFUL

18 in. (46 cm) square unit with 2,600 watt/240V heater or optional 3,500 watt 240V heater, or 18 x 24 in. (46 x 61 cm) unit with high-output 3,500 watt/240V heater as standard

USER FRIENDLY

Diagnostic indicator lights and fully-adjustable digital heat control with cooling fan

THIN PROFILE

Ultra slim 2.75 in. (7 cm) head height

ADJUSTABLE

Temperature (digital), heat shield, head height and level

EFFICIENT

High wattage/close coil density heater, cooling fan and air curtain for edge-to-edge uniformity

CONVENIENT

Air-cooled outer skin, heavy-duty side handles and locking casters

FAST

Flashes plastisol in 7 to 10 seconds

MODELS AVAILABLE:

RD-18-240
18 in. (46 cm) square with 2,600 watt/240V heater

RD-18-240-HO
18 in. (46 cm) square with 3,500 watt/240V heater

RD-1824-240
18 x 24 in. (46 x 61 cm) with 3,500 watt/240V heater

Brochure & Specifications
Operation Manual

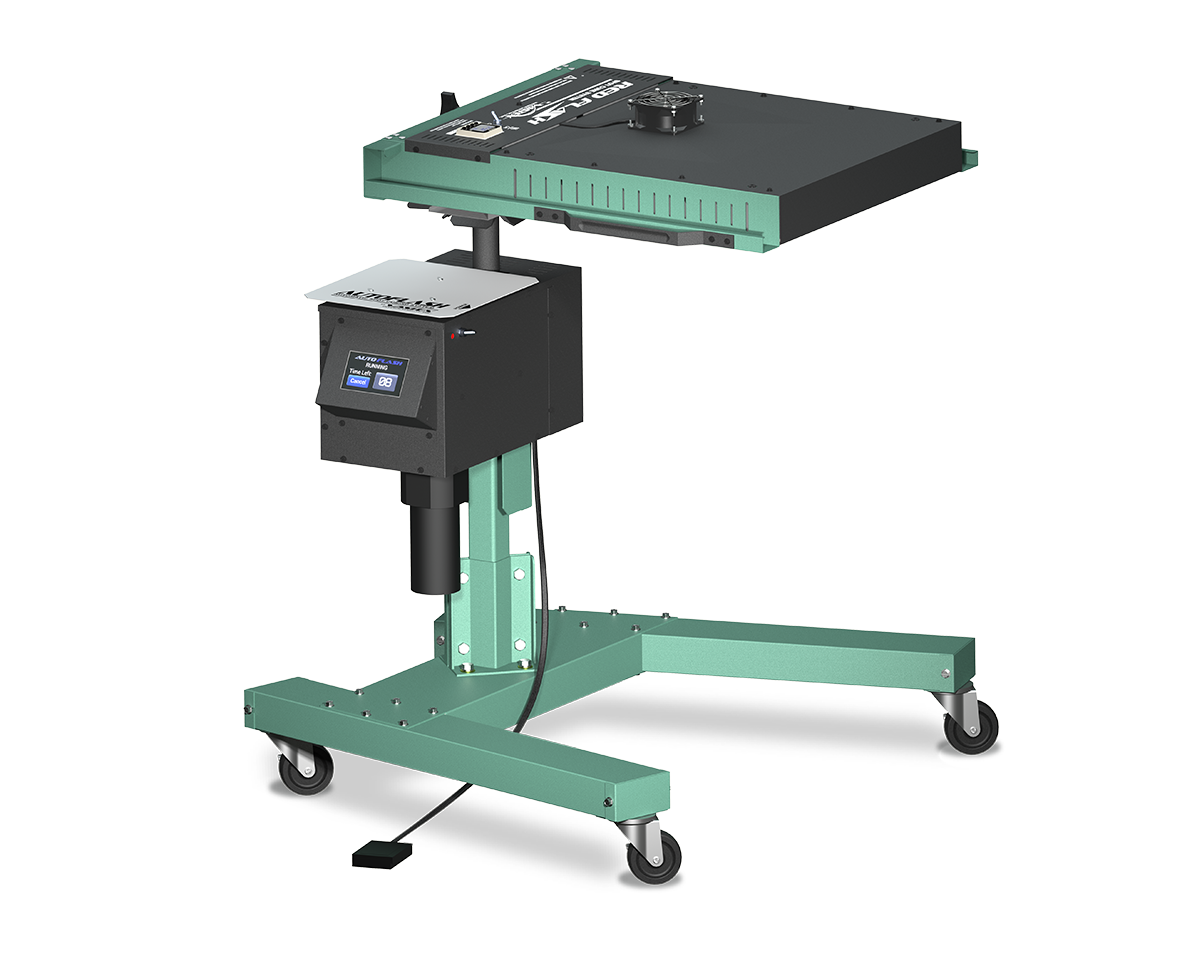

AutoFlash - Premium Flash Cure Unit Upgrade

The AutoFlash upgrade rotates the head of the flash cure unit into place above the pallet with the touch of a foot pedal, and automatically rotates the head away from the pallet after a user-adjustable dwell time has elapsed to prevent burning or under-flashing of garments that occurs when operators become distracted.

All AutoFlash units are now equipped as standard with an HMI (Human-Machine-Interface) to control and display dwell time and direction of head rotation. More visible from a distance than previous controls, it also displays a 'ready' message for the next cycle and improves cycle reaction by responding accurately whether the foot switch is pressed during or following a flash cure cycle.

The Auto Flash unit features a high-torque DC gear motor and eccentric arm drive that actuates head rotation progressively for smooth starts and stops, and a foot pedal switch with 15 ft (4.6 m) cord for operator convenience.

A "Breakaway Detent" feature stops the head from rotating if it encounters an obstacle, maximizing operator safety while minimizing damage to the flash cure head, the Auto-Flash gearbox and/or the screen printing press.

The AutoFlash upgrade is now offered on all models of Vastex flash cure units: F-Series, RedFlash and Air-Flash

FEATURES

  • Easy-to-read HMI display panel
  • Powerful DC gear motor
  • Selectable clockwise or counterclockwise 95° head rotation
  • Eccentric arm drive for smooth start and stop
  • 0 to 30 second precision timer
  • Foot pedal actuator on 15 ft cord
  • Ships UPS in three separate boxes

OPTIONS

  • Heavy Duty Stand with large locking casters
  • International power cords available
